Digital IC Trainer Kit with Integrated Digital Voltmeter

Product Code : SCL-EAE-11160

The Digital IC Trainer Kit with Integrated Digital Voltmeter is an electronics trainer used for digital IC experiments, logic gate verification, truth-table study, voltage measurement, and basic digital electronics training. It is suitable for physics laboratories, electronics laboratories, engineering colleges, polytechnics, ITI/TVET centres, STEM classrooms, distributors, and institutional procurement buyers.

Product Description

The Digital IC Trainer Kit with Integrated Digital Voltmeter from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Logic Circuit Trainers. A dedicated product page with final product code, IC list, voltmeter range, experiment count, supply rating, and accessories should be confirmed before publishing.

This training kit is intended to help learners perform practical digital electronics experiments while observing voltage values through an integrated digital voltmeter. Depending on the confirmed configuration, it may support experiments involving logic gates, Boolean algebra, flip-flops, counters, clock pulses, input-output logic states, and voltage-level checking in digital circuits.

Key Features

• Digital IC training format: supports practical study of integrated digital circuits and logic behaviour.
• Integrated voltmeter concept: intended for voltage observation during circuit experiments; final range must be confirmed.
• Logic circuit learning: suitable for truth-table verification and input-output state comparison.
• Electronics trainer category fit: aligns with Electrical and Electronics laboratory teaching equipment.
• Measurement-based learning: helps students connect logic states with measurable voltage levels.
• Institutional lab use: suitable for supervised school, college, polytechnic, ITI, and TVET practical sessions.
• Specifications pending: product code, IC list, voltmeter range, power rating, and experiment list must be verified before final publication.

Technical Specifications

What's Included in the Kit

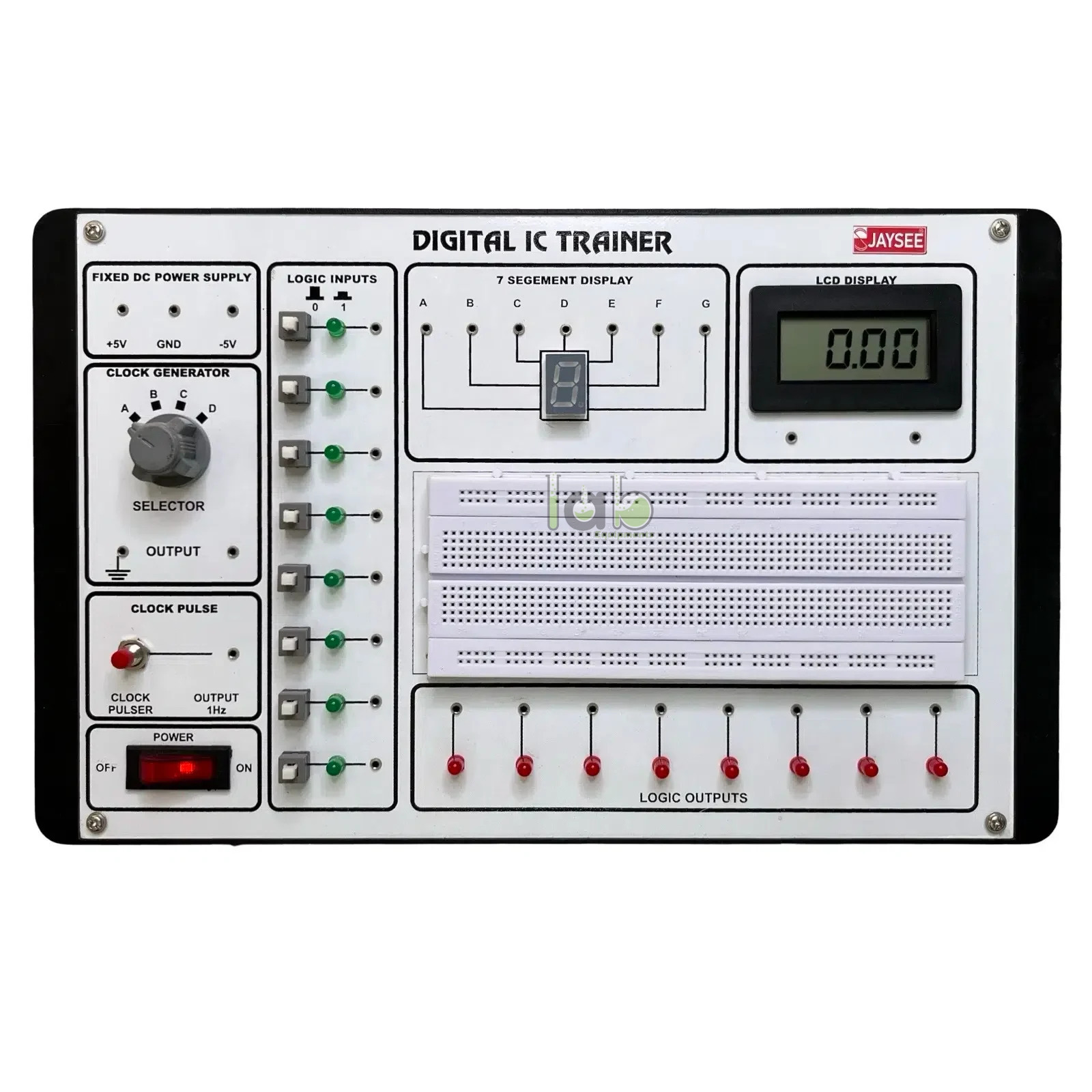

• Digital IC Trainer Kit main board with integrated digital voltmeter
• Digital ICs or onboard IC modules
• Logic input switches and output indicators
• Patch cords or connecting leads
• Experiment manual or worksheet
• Power supply or adapter
• Storage case, spare ICs, probes, or certificate

Applications / Uses

• Teaching digital IC fundamentals in electronics and physics laboratories
• Verifying logic gate truth tables through practical input-output testing
• Measuring circuit voltage levels using the integrated digital voltmeter
• Demonstrating Boolean algebra using practical digital circuit connections
• Studying flip-flops, counters, multiplexers, or other circuits if supported by the confirmed kit
• Supporting lab records, troubleshooting practice, and digital electronics skill development

How to Use the Digital IC Trainer Kit with Integrated Digital Voltmeter

1. Place the trainer kit on a clean, dry, non-conductive laboratory bench.
2. Read the supplied experiment manual and identify the required digital IC or onboard circuit.
3. Confirm the correct low-voltage DC power supply before switching on the trainer.
4. Connect the required inputs and outputs using approved patch cords or onboard terminals.
5. Set the input switches to the required logic condition.
6. Observe the output indicator and compare the result with the expected truth table.
7. Use the integrated digital voltmeter to check the relevant voltage point, if the circuit design allows it.
8. Switch off the supply before changing ICs, patch cords, or circuit connections.

Safety note: Use the Digital IC Trainer Kit with Integrated Digital Voltmeter only with the confirmed low-voltage supply under instructor supervision. Do not connect the trainer to mains electricity, do not short supply terminals, and do not insert or remove ICs while the trainer is powered.

Care & Maintenance

• Store the trainer board in a dry, dust-free cabinet after each practical session.
• Keep ICs, patch cords, probes, manuals, and accessories in labelled compartments.
• Inspect the voltmeter display, sockets, terminals, switches, indicators, and power input before use.
• Replace damaged ICs, loose sockets, cracked patch cords, or faulty indicators before issuing the kit to students.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The company supplies educational laboratory equipment for physics, electronics, engineering, STEM, and vocational training institutions. Its Electrical and Electronics range includes electronics trainer kits, logic circuit trainers, semiconductor devices trainers, power supply units, analog and digital multimeters, CRO trainers, PLC trainers, and control systems trainers. Buyers should request final specifications before procurement to confirm the IC list, voltmeter range, experiment count, power rating, accessories, packaging, and documentation.
