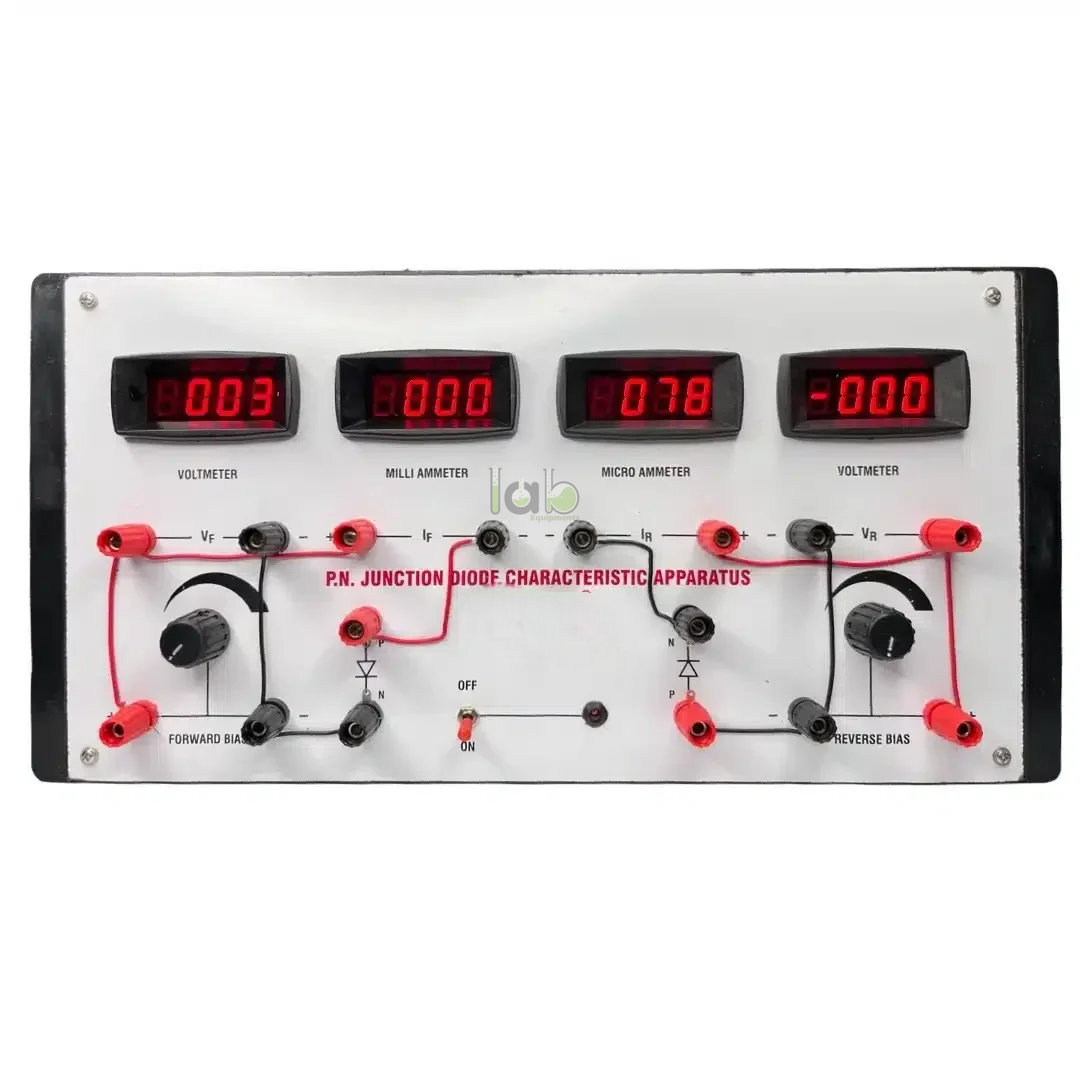

Digital PN Junction Diode Demonstration Unit

Product Code : SCL-EAE-11200

The Digital PN Junction Diode Demonstration Unit is a semiconductor electronics laboratory apparatus used to demonstrate PN junction diode behaviour, forward-bias characteristics, reverse-bias characteristics, threshold voltage, and voltage-current response with digital measurement support where supplied. It supports practical learning for engineering colleges, polytechnics, ITI/TVET centres, physics laboratories, electronics labs, STEM training centres, distributors, and institutional procurement buyers.

Product Description

The Digital PN Junction Diode Demonstration Unit from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Semiconductor Devices Trainer. A dedicated product page with final product code, PN diode type, diode material, digital meter arrangement, supply range, current range, biasing circuit, terminals, protection, accessories, and documentation should be confirmed before publishing.

A digital PN junction diode unit helps learners observe how a junction diode conducts in forward bias and restricts current in reverse bias within its rated operating region. Depending on the final configuration, the unit may support forward V-I characteristics, reverse characteristics, knee-voltage observation, leakage-current study, rectifier basics, and digital voltage-current reading for graph plotting.

Key Features

• PN junction diode demonstration: supports practical observation of forward-bias and reverse-bias diode behaviour.
• Digital measurement support: product name indicates digital display or digital meter functionality; exact display arrangement should be confirmed.
• V-I characteristics experiment: helps students record voltage and current readings for diode characteristic-curve plotting where supported.
• Forward-bias learning: enables study of conduction region, threshold voltage, knee voltage, and current rise with applied voltage.
• Reverse-bias learning: may support observation of reverse leakage current within safe limits; confirm final circuit and meter range.
• Semiconductor devices trainer: suitable for electronics engineering, physics, instrumentation, and STEM laboratory sessions.
• Specifications pending: diode type, digital display type, supply range, meter range, current limiting, terminals, and accessories must be verified.

Technical Specifications

What’s Included in the Kit

• Digital PN Junction Diode Demonstration Unit main unit or experiment panel
• PN junction diode section, diode socket, or supplied diode device
• Forward-bias and reverse-bias circuit section
• Digital voltmeter, digital ammeter, dual digital display, or external digital meter terminals
• Current-limiting resistor, protection resistor, variable control, or biasing network
• DC power supply, external adapter, battery holder, or power-input terminals
• Patch cords, connecting leads, jumper wires, experiment manual, observation sheet, graph worksheet, or circuit diagram

Applications / Uses

• Demonstrating PN junction diode forward-bias characteristics
• Studying reverse-bias diode behaviour and leakage-current observation where supported
• Recording digital voltage-current readings for diode V-I graph plotting
• Demonstrating diode polarity, conduction threshold, knee voltage, and current-limiting concepts
• Supporting rectifier basics and semiconductor-device theory where included in the supplied manual
• Teaching low-voltage measurement practice for physics, electronics, instrumentation, and STEM practicals

How to Use the Digital PN Junction Diode Demonstration Unit

1. Place the demonstration unit on a dry, stable laboratory bench.
2. Confirm the PN diode type, supply voltage, current limit, digital meter range, polarity marking, and circuit diagram before switching on.
3. Connect or select the PN diode in forward bias according to the approved wiring diagram.
4. Check whether the built-in digital meter or approved external meter is selected for voltage and current reading.
5. Set the supply or current-control section to the minimum output before energising the circuit.
6. Increase the voltage gradually and record diode voltage and current readings without exceeding the confirmed rating.
7. Repeat the experiment in reverse bias only if the unit and manual specify a safe reverse-bias procedure.
8. Plot the forward and reverse V-I characteristics as instructed in the supplied experiment manual.
9. Switch off the supply before changing polarity, diode type, meter range, or circuit connections.

Safety note: Use the Digital PN Junction Diode Demonstration Unit only with the confirmed low-voltage DC supply and current-limiting arrangement. Do not connect the experiment circuit directly to mains supply. Observe diode polarity, avoid short circuits, do not exceed the confirmed forward-current or reverse-voltage rating, and switch off power before changing connections.

Care & Maintenance

• Keep the panel, digital display, diode socket, terminals, switches, meters, controls, and connecting leads clean and dry.
• Inspect diode polarity marking, socket condition, display function, test leads, fuses, current-limit control, and supply output before use.
• Do not force diode leads into sockets or operate the diode beyond confirmed voltage, current, reverse-voltage, power, or meter-range limits.
• Store the demonstration unit and spare diode components in a dry, labelled, dust-controlled cabinet after laboratory use.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The brand’s verified Electrical and Electronics category includes electronics trainer kits, power supply units, analog and digital multimeters, semiconductor devices trainers, logic circuit trainers, and electronic lab equipment. Lab Equipments Ambala also supplies electronics lab trainers and educational laboratory equipment for schools, colleges, universities, and research labs. Buyers should request final specifications before procurement to confirm product code, diode type, digital display arrangement, supply range, meter layout, protection, accessories, packing, and documentation.

Frequently Asked Questions

What is a Digital PN Junction Diode Demonstration Unit used for?

A Digital PN Junction Diode Demonstration Unit is used to demonstrate PN junction diode forward-bias and reverse-bias behaviour, voltage-current characteristics, threshold voltage, and basic semiconductor-device operation.

What makes this PN diode unit digital?

The product name indicates digital measurement or display support. The exact digital display type, number of displays, measurement range, resolution, and channels should be confirmed from the final specification sheet.

Which PN diode type is supplied?

The supplied diode type is not verified. Confirm whether the unit includes a silicon diode, germanium diode, replaceable PN junction diode, or a fixed diode mounted on the panel.

What readings are recorded during the experiment?

Students typically record diode voltage and diode current for different applied voltages, then plot the forward and reverse V-I characteristics according to the supplied experiment manual.

Can this demonstration unit be connected directly to mains power?

No. The experiment circuit should be used only with the confirmed low-voltage DC supply or approved adapter. Direct mains connection can damage the unit and create an electrical hazard.

What should be confirmed before ordering?

Confirm product code, PN diode type, diode material, digital display arrangement, voltage range, current range, current-limiting method, terminals, connecting leads, experiment manual, packing, and documentation.
