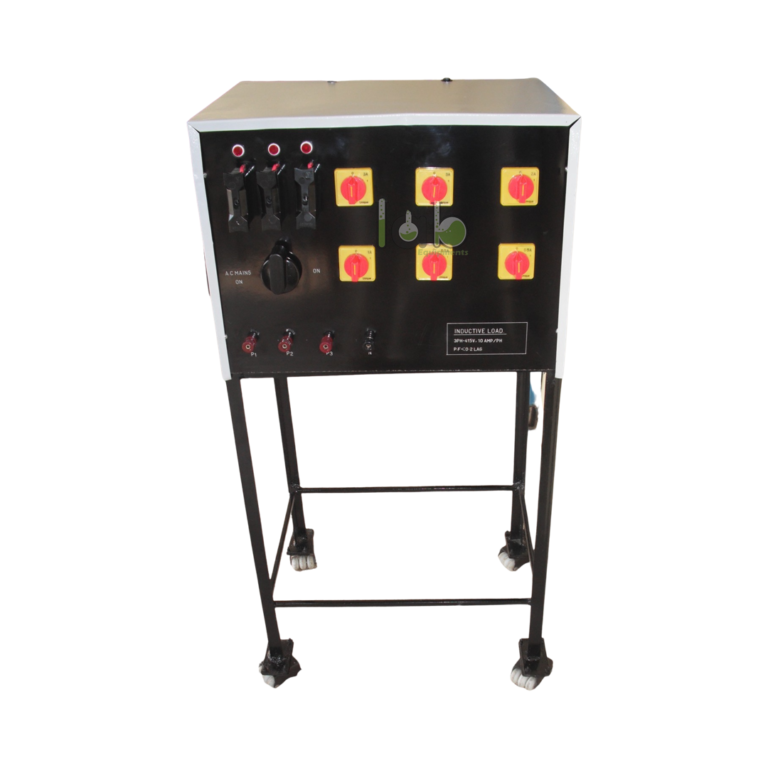

Electrical Inductive Load Assembly

Product Code : SCL-EAE-11167

The Electrical Inductive Load Assembly is an electrical laboratory apparatus used to apply inductive loading for current-lag observation, power factor study, AC circuit analysis, and electrical machine training. It is suitable for engineering colleges, polytechnics, ITI/TVET centres, electrical training laboratories, distributors, and institutional procurement buyers.

Product Description

The Electrical Inductive Load Assembly from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Electrical Machine Training Apparatus. A dedicated product page with final product code, kVAR rating, voltage rating, current rating, phase type, inductance values, step control, enclosure, and duty cycle should be confirmed before publishing.

An inductive load assembly provides a load in which current lags voltage because of coil inductance. In practical electrical laboratories, this apparatus can be used to demonstrate inductive reactance, lagging power factor, AC load behaviour, transformer loading, alternator loading, and power-factor correction concepts when paired with suitable meters and an approved AC source.

Key Features

• Inductive load application: supports AC circuit experiments where current lags voltage.
• Power factor study: useful for demonstrating lagging power factor and reactive load behaviour.
• Electrical machine training: suitable for alternator, transformer, and AC power-source loading when correctly rated.
• Stepwise or variable loading: final design may include switching steps or tap selection; confirm before publishing.
• Measurement-based practicals: can be paired with voltmeters, ammeters, wattmeters, power factor meters, and power analyzers.
• Electrical and Electronics category fit: aligns with electrical apparatus, lab meters, and induction-related practical equipment.
• Specifications pending: final kVAR rating, voltage, phase, current rating, inductance range, protection, and enclosure details must be verified.

Technical Specifications

What's Included in the Kit

• Electrical Inductive Load Assembly main unit
• Inductive coil or reactor load sections
• Step selector, tap terminals, rotary switch, or control panel
• Input/output terminals and earthing provision
• Fuse, MCB, overload protection, enclosure, or ventilation arrangement
• Instruction manual, wiring diagram, test report, calibration certificate, or documentation

Applications / Uses

• Applying inductive load to alternators, transformers, and AC power-source trainers
• Studying lagging power factor in AC circuits
• Demonstrating phase difference between voltage and current
• Observing current, voltage, power, and reactive-load behaviour under controlled conditions
• Supporting power-factor correction demonstrations when used with suitable capacitor equipment
• Training students in safe AC load connection, switching, measurement, and shutdown procedure

How to Use the Electrical Inductive Load Assembly

1. Place the inductive load assembly on a dry, stable, ventilated laboratory bench or floor stand.
2. Confirm the voltage, current, phase, kVAR rating, duty cycle, and earthing requirement before connection.
3. Connect the unit to the AC source, alternator, transformer, or trainer according to the approved wiring diagram.
4. Connect suitable instruments such as voltmeter, ammeter, wattmeter, power factor meter, or power analyzer.
5. Set the load control to the minimum or safest starting position before energising the circuit.
6. Switch on the supply and increase the inductive load gradually using the approved steps or tap selection.
7. Record voltage, current, real power, apparent power, power factor, and phase-lag observations as required.
8. Reduce the load, switch off the supply, and allow the unit to cool before disconnection or storage.

Safety note: Use the Electrical Inductive Load Assembly only within its confirmed voltage, current, kVAR, phase, and duty ratings. Inductive loads can produce heating, high inrush current, stored magnetic energy, and switching transients; use proper earthing, insulated leads, protective switching, trained supervision, and approved meters.

Care & Maintenance

• Keep coil sections, terminals, switches, vents, and enclosure surfaces clean and dry.
• Inspect insulation, earthing continuity, terminal tightness, and overheating marks before operation.
• Do not overload the inductive sections beyond the confirmed duty cycle.
• Store the unit in a dry, dust-controlled area away from moisture, corrosive fumes, and mechanical impact.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The brand supplies electrical and electronics apparatus, physics laboratory equipment, lab meters, current-control equipment, induction apparatus, and electrical practical training resources for educational institutions. Its equipment range supports practical learning in AC circuits, electrical machines, power measurement, induction, and load testing. Buyers should request final specifications before procurement to confirm product code, kVAR rating, voltage, phase, current rating, inductance steps, protection, packing, and documentation.
