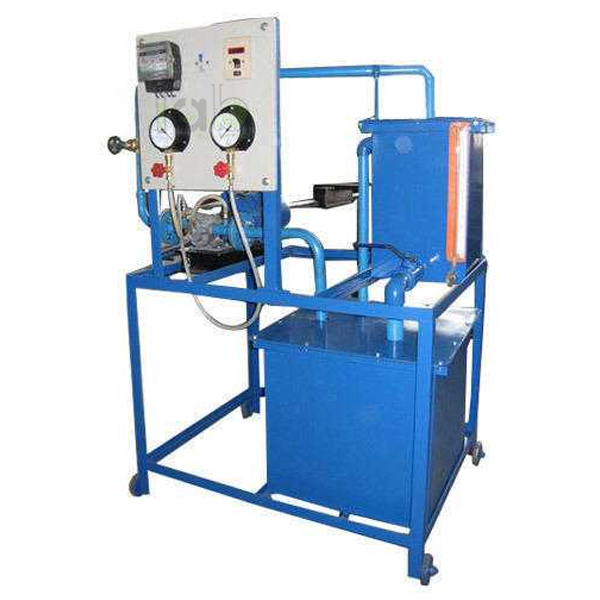

Jet Pump Test Setup Manufacturer,Supplier and Exporter in Ambala
Product Code : EL-HML-11058
FEATURES:-
Closed loop water circulation
Compact & stand alone set-up
MS Excel sample calculation program on demand
Stainless Steel tanks and wetted parts
Superb painted structure
Simple to Operate & Maintain
TECHNICAL SPECIFICATIONS: –
Product : Mono – Block Jet Pump Test Rig
Pump & Drive : Mono – Block Jet Pump, Size 32 mm x 25 mm x 25 mm (Suction x Pressure x Delivery),
Capacity 1 HP
Supply Tank : Capacity 70 Ltrs.
Measuring Tank : Capacity 50 Ltrs fitted with Piezometer Tube & Scale
Medium Flow : Clear Water
Piping : GI / PVC
Stop Watch : Electronic
Pressure Gauge : Bourdon Type
Control Panel : Comprises of Energy Measurement : Energy meter Electronics, L & T make
MCB : For Overload Protection Standard make On/Off Switch, Main Indicator etc.
The whole Set-up is well designed and arranged in a good quality painted structure.
DESCRIPTION:-
The Set-up is designed to study the performance of Jet Pump. The Set-up consists of a Mono-Block Jet Pump coupled with electrical motor, supply tank, measuring tank & pipe fittings for closed loop oil circulation. Pressure and Vacuum Gauges are connected on delivery and suction side of pump for the purpose of measurement. The flow rate of water is measured using measuring tank and stop watch provided.
EXPERIMENT
To determine overall efficiency and pump efficiency of the Jet Pump
To plot Head vs. Discharge, Pump efficiency vs. Discharge
UTILITIES REQUIRED:-
1.Electric Supply: – Provide 230 +/- 10 VAC, 50 Hz, Single Phase Electric Supply with proper earthing. (Neutral –
Earth voltage less than 5 VAC) 5 A, three pin socket with switch for pump.
2.Water Supply: Tap water connection ½ “BSP, Distilled water @ 90 Ltrs. (Optional)
