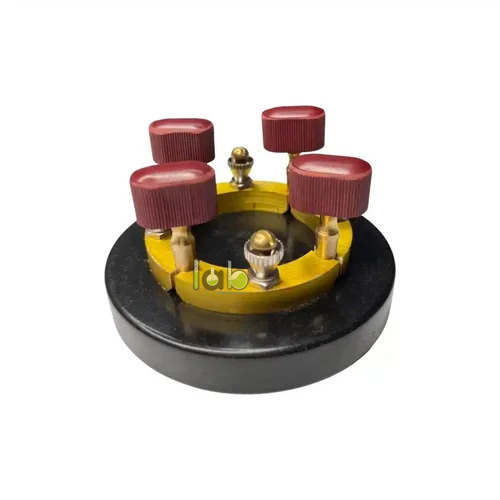

Four Position Plug Switch

Product Code : SCL-EAE-11261

The Four Position Plug Switch is a manually operated laboratory switching device used to open, close or select electrical paths in low-voltage circuit experiments. It enables students and teachers to control multiple circuit branches without repeatedly disconnecting the connecting leads.

Product Description

The apparatus uses a multi-position contact arrangement that can provide several selectable circuit states. In a conventional plug-key design, inserting a conductive plug closes the corresponding contact path, while removing it opens that path. The precise switching logic depends on how the contacts are internally connected.

The switch can support circuit-routing, component-comparison and make-and-break experiments within an electrical and electronics laboratory. Before use, the terminal layout should be identified because four-position, four-way and four-plug devices may not all provide the same circuit function.

Key Features

• Four-position switching: Provides multiple selectable circuit conditions.
• Plug-operated contacts: Opens or closes applicable paths through removable conductive plugs.
• Multiple branch control: Reduces repeated rewiring during comparative experiments.
• Visible switching state: Allows students to observe which contact paths are engaged.
• Manual operation: Requires no internal power source or electronic controller.
• Laboratory terminals: Supports connection to compatible low-voltage circuit leads.
• Reusable teaching apparatus: Suitable for repeated demonstrations within confirmed ratings.

Technical Specifications

What's Included in the Kit

• 1 × Four Position Plug Switch
• Removable contact plugs – quantity

A power supply, lamps, resistors, meters, connecting leads and other circuit components are not included unless specifically stated.

Applications / Uses

• Opening and closing multiple low-voltage circuit branches.
• Selecting between connected electrical components.
• Comparing lamps, resistors, cells or other compatible loads.
• Demonstrating independent and combined switching states.
• Constructing elementary circuit-routing exercises.
• Supporting switching demonstrations with a Domestic Circuit Apparatus.
• Conducting practical work from the physics laboratory equipment range.

How to Use the Four Position Plug Switch

1. Identify the terminal and contact arrangement from the supplied diagram.
2. Keep the laboratory power source switched off during wiring.
3. Connect the required supply and circuit branches to the designated terminals.
4. Check that the plugs and contact surfaces are clean.
5. Insert the required plug to close the corresponding circuit path.
6. Remove the plug to open that path.
7. Observe the response of the connected lamp, meter or other load.
8. Test each permitted position and record the resulting circuit state.
9. Switch off the supply before changing the external wiring.

Safety note: Use only a compatible, current-limited, low-voltage laboratory supply. Never connect the switch directly to mains electricity or exceed its confirmed voltage and current ratings.

Care & Maintenance

• Keep plugs, contacts and terminals clean and free from corrosion.
• Insert and remove plugs vertically without excessive force.
• Do not use abrasive tools that may alter the contact fit.
• Store all removable plugs with the switch to prevent loss.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific and educational laboratory equipment from Ambala, India. Its range includes physics apparatus, circuit switches, electrical trainers and classroom demonstration equipment. The company supports institutional procurement and international laboratory supply. Buyers should confirm the switch configuration, terminal layout and electrical ratings before ordering.

Frequently Asked Questions

What is a Four Position Plug Switch used for?

It is used to open, close or select several electrical paths in a low-voltage laboratory circuit.

Is it the same as a four-way plug key?

The terms may describe similar apparatus, but the internal contact arrangement can differ. Confirm whether the product has four independent keys, four selectable paths or a commutator layout.

How does a plug switch close the circuit?

In a conventional design, inserting a conductive plug bridges two contact blocks and completes the applicable circuit path.

Can several positions be closed simultaneously?

That depends on the switch design. Independent plug positions may allow multiple closed paths, while selector arrangements may permit only one active position.

Are the removable plugs included?

Plug inclusion and quantity must be confirmed from the product specification.

Can the switch be connected to mains electricity?

No. It is intended for controlled educational circuits and must not be connected directly to mains electricity.

Explore the complete electrical and electronics laboratory range or contact Lab Equipments Ambala to confirm the Four Position Plug Switch configuration and institutional supply requirements.
