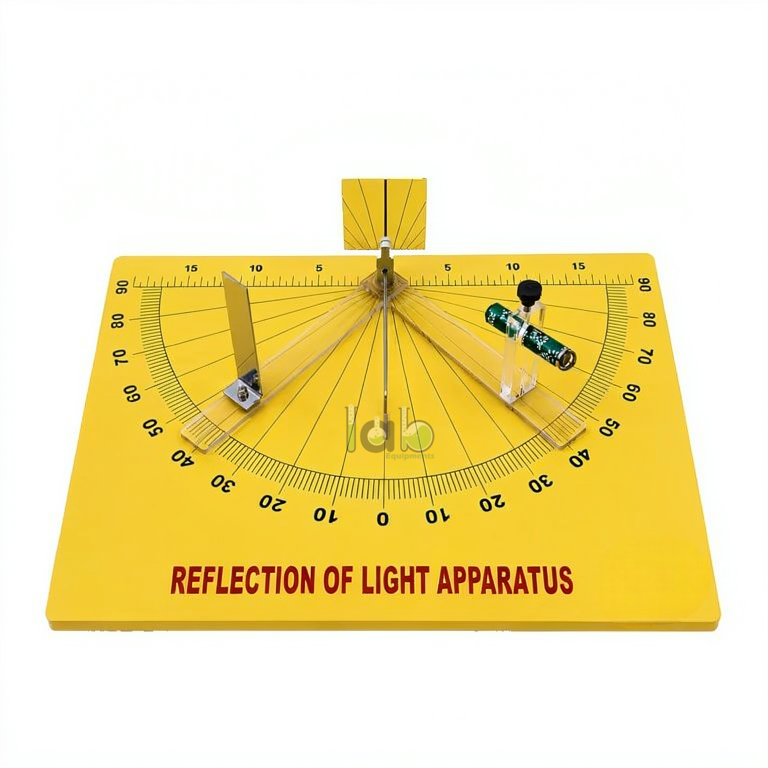

Quick Answer: Light Reflection Demonstration Unit is a manually operated apparatus for tracing incident and reflected rays at a mirror and checking that the angle of incidence equals the angle of reflection.
Last updated: October 2026
Key Features
Reflecting surface with a ray-demonstration arrangement
Angular scale or marked base for angles measured from the normal
Manual operation without complex controls
Readings repeatable at several incident-ray angles
About This Product
With the mirror on the reference line, one narrow ray is directed at it, the normal is drawn at the point of incidence and both angles are measured and compared before the test is repeated at other angles. For checking the first and second laws of reflection it is a straightforward Light And Optics tool.
Frequently Asked Questions
Q1. What does the unit demonstrate? The incident ray, the reflected ray, the point of incidence, the surface normal and the equality of the angles of incidence and reflection measured from the normal.
Q2. Can students measure the reflection angles? Yes. The angular scale or marked base allows the two angles to be read and compared.
