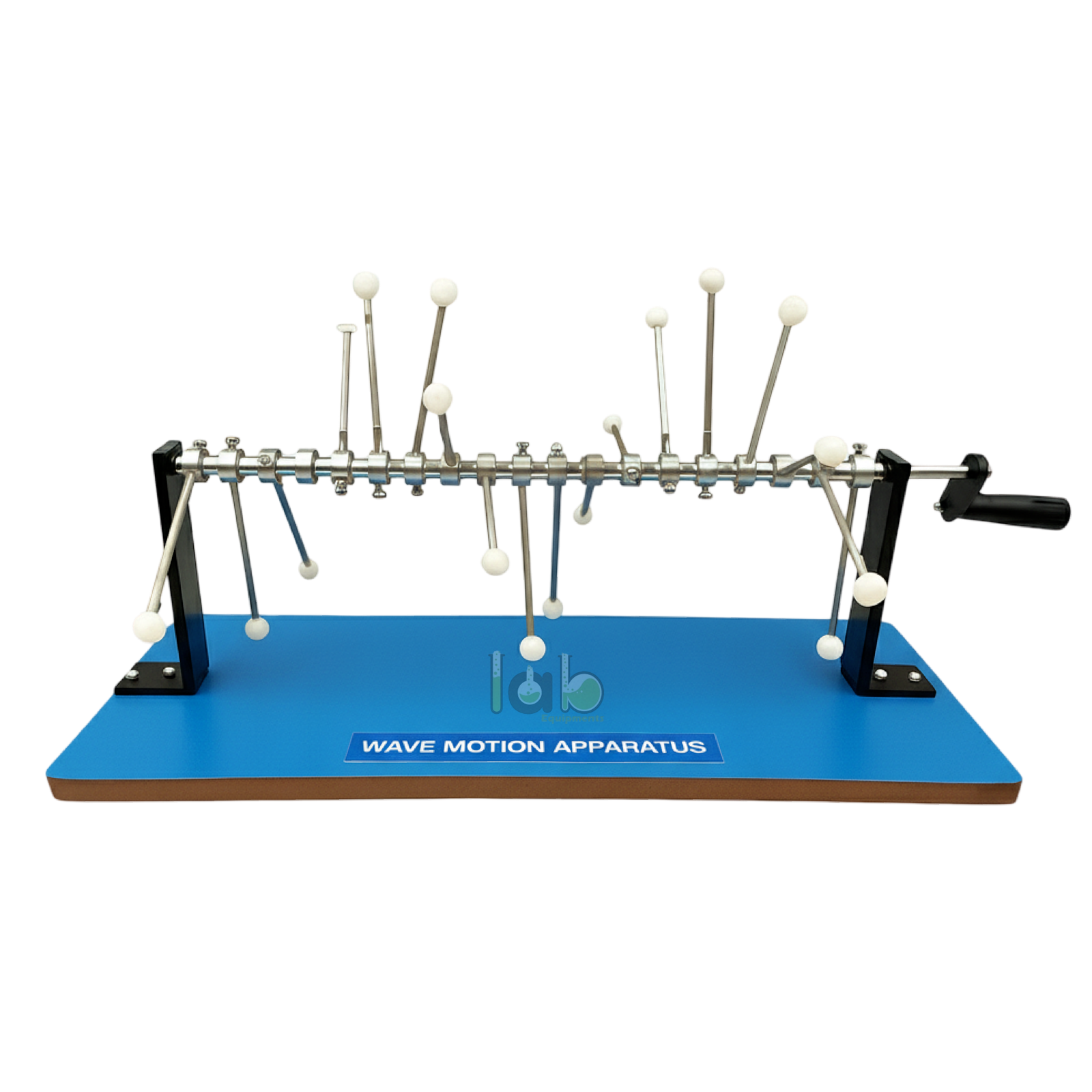

Powell Wave Motion Demonstrator
.png)
Product Code : SCL-PMP-11301
The Powell Wave Motion Demonstrator is a mechanical physics model used to visualize wave propagation through a sequence of coupled oscillating elements. It helps students and teachers observe transverse displacement, phase difference, wavelength, amplitude and the transfer of a disturbance without corresponding bulk movement of the medium.
Product Description
The demonstrator represents a continuous medium using a row of connected rods, bars, pendulums or similar moving elements. When the operating handle or drive mechanism is activated, adjacent elements move with a controlled phase difference, producing a visible wave profile along the apparatus.
The slow mechanical motion allows learners to inspect crests, troughs, equilibrium positions and progressive displacement more clearly than in many rapidly moving wave systems. The exact number of elements, coupling method, drive type, amplitude control, wavelength settings and frame construction must be confirmed from the current product specification.
Key Features
- Visible wave propagation: Converts an abstract travelling-wave concept into coordinated mechanical movement.
- Sequential phase motion: Shows how neighbouring elements can oscillate at different stages of the same cycle.
- Transverse-wave representation: Demonstrates displacement perpendicular to the apparent direction of wave travel.
- Crest and trough identification: Makes characteristic positions in a transverse wave easier to recognize.
- Slow manual demonstration: Allows the teacher to pause or reduce motion for closer observation where the supplied mechanism permits.
- Reusable teaching model: Suitable for repeated physics lessons, STEM activities and science exhibitions.
- No complex measurement system: Supports qualitative wave instruction without electronic data acquisition.
Technical Specifications
|
Specification |
Detail |
|
Product name |
Powell Wave Motion Demonstrator |
|
Brand |
Lab Equipments Ambala |
|
Product category |
Mechanical Wave Motion Demonstrator |
|
Primary demonstration |
Progressive transverse wave motion |
|
Power requirement |
None for a fully manual model; powered configuration |
|
Standards or certifications |
No product-specific certification confirmed |
What's Included
- Powell wave-motion demonstration assembly
- Supporting frame or base
- Coupled oscillating elements
- Manual handle, crank or drive mechanism
- Protective cover or storage packaging
- Teacher demonstration guide or instruction manual
Applications
- Demonstrating progressive transverse wave motion.
- Identifying crests, troughs and equilibrium positions.
- Explaining wavelength, amplitude and phase difference.
- Distinguishing particle oscillation from wave propagation.
- Showing that energy can travel while individual elements oscillate locally.
- Supporting wave lessons, demonstrations and science exhibitions.
Related resources include the Tuning Fork Set of 8, the Doppler Effect Kit, broader Physics Laboratory Equipment and the company’s laboratory equipment catalogue.
How to Use the Powell Wave Motion Demonstrator
- Place the apparatus on a stable and level demonstration table.
- Check that all moving elements and couplings are correctly seated.
- Move the handle or drive mechanism slowly through one operating cycle.
- Observe how each element oscillates while the wave profile travels along the model.
- Pause at selected positions to identify crests, troughs and equilibrium points.
- Compare neighbouring elements to examine their phase relationship.
- Repeat the demonstration at different operating speeds or settings where available.
Safety note: Keep fingers, loose clothing and hair clear of moving rods, linkages and gears. Do not force the handle if the mechanism becomes obstructed.
Care & Maintenance
- Remove dust from rods, bearings and linkages using a soft dry cloth.
- Do not bend the oscillating elements or apply excessive torque to the handle.
- Inspect couplings and fasteners periodically for looseness.
- Store the apparatus with moving parts secured against impact.
Why Choose Lab Equipments Ambala
Lab Equipments Ambala manufactures and supplies educational physics apparatus, demonstration models and laboratory experiment systems from Ambala, India. Its physics range covers wave and sound experiments, mechanics apparatus, optics systems and measurement instruments for schools, colleges and universities. The company also serves institutional and international buyers. Purchasers should request the current dimensional drawing, mechanism details and packing list before ordering.
Frequently Asked Questions
What is a Powell Wave Motion Demonstrator used for?
It is used to visualize progressive wave motion, transverse displacement, phase difference, wavelength, crests and troughs.
Does the model demonstrate a transverse wave?
Yes. The standard demonstration uses elements moving perpendicular to the apparent direction in which the wave pattern travels.
Do the individual elements travel along the apparatus?
No. Each element oscillates around its own equilibrium position while the disturbance and wave pattern propagate through the sequence.
Is the model manually operated?
A manual mechanism is typical, but the exact handle, crank or powered drive arrangement must be confirmed for the supplied model.
Can wavelength or amplitude be adjusted?
Adjustment capabilities have not been verified. Request confirmation of available phase, wavelength and amplitude settings.
Is it suitable for classroom demonstrations?
Yes. It is suitable for supervised secondary-school, senior-secondary and introductory college lessons on mechanical waves.
Request the confirmed number of elements, drive mechanism and frame dimensions, or explore the Physics Laboratory Equipment category for related wave apparatus.
