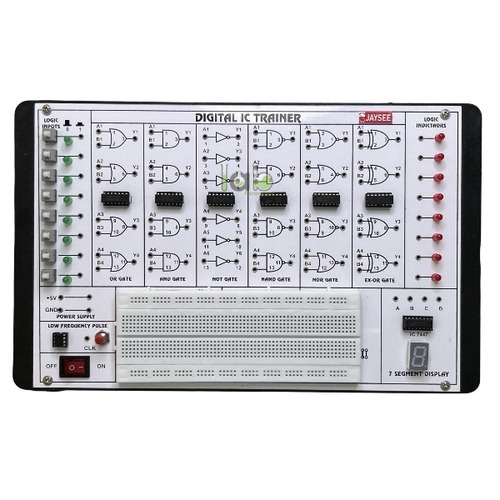

Digital Logic Circuit Trainer

Product Code : SCL-EAE-11158

The Digital Logic Circuit Trainer is an electronics trainer used for teaching digital logic gates, Boolean algebra, truth tables, flip-flops, combinational circuits, and sequential circuit fundamentals. It is suitable for physics laboratories, electronics laboratories, engineering colleges, polytechnics, ITI/TVET centres, STEM classrooms, distributors, and institutional procurement buyers.

Product Description

The Digital Logic Circuit Trainer from Lab Equipments Ambala is best placed under Physics Lab / Electrical and Electronics / Logic Circuit Trainers. A dedicated product page with final product code, supplied IC list, experiment count, power supply rating, board layout, and accessories should be confirmed before publishing.

This trainer is intended to help students convert digital electronics theory into practical circuit observations. Depending on the confirmed configuration, it can support experiments on AND, OR, NOT, NAND, NOR, XOR, XNOR gates, truth-table verification, Boolean expression implementation, half adder, full adder, flip-flops, counters, and basic digital troubleshooting.

Key Features

• Digital logic training format: supports hands-on study of logic circuits and digital electronics.
• Logic gate learning: suitable for verifying gate behaviour and truth tables when the required ICs are supplied.
• Combinational and sequential scope: may support adders, flip-flops, counters, and related circuits after final confirmation.
• Trainer-kit category fit: aligns with Electrical and Electronics laboratory teaching equipment.
• Measurement-friendly use: can be paired with logic indicators, multimeters, CROs, or oscilloscopes as required.
• Classroom demonstration value: helps teachers show input-output logic states clearly during practical sessions.
• Specifications pending: product code, IC list, supply rating, and experiment count must be verified before final publication.

Technical Specifications

What's Included in the Kit

• Digital Logic Circuit Trainer main board
• Logic gate ICs or onboard logic modules
• Input switches and output indicators
• Patch cords or connecting leads
• Experiment manual or worksheet
• Power supply or adapter
• Storage box, spare ICs, probes, or certificate

Applications / Uses

• Teaching basic digital electronics in school, college, and vocational laboratories
• Verifying logic gate truth tables through input and output observations
• Building simple Boolean expressions using practical circuit connections
• Demonstrating combinational circuits such as half adders and full adders, if supported
• Studying sequential circuits such as latches, flip-flops, and counters, if supplied
• Supporting lab records, troubleshooting practice, and STEM electronics activities

How to Use the Digital Logic Circuit Trainer

1. Place the trainer on a clean, dry, non-conductive laboratory bench.
2. Read the experiment manual and identify the required gate, IC, or onboard module.
3. Confirm the correct low-voltage DC supply before switching on the trainer.
4. Connect the required logic inputs and outputs using approved patch cords.
5. Set the input switches to the first truth-table condition.
6. Observe the output LED, display, meter reading, or waveform as specified.
7. Repeat the process for all input combinations and record the truth table.
8. Switch off the supply before changing ICs, patch leads, or circuit configuration.

Safety note: Use the Digital Logic Circuit Trainer only with the confirmed low-voltage supply under instructor supervision. Do not connect the trainer to mains electricity, do not short supply terminals, and do not insert or remove ICs while powered.

Care & Maintenance

• Store the trainer board in a dry, dust-free cabinet after every lab session.
• Keep ICs, patch cords, manuals, and accessories in labelled compartments.
• Inspect switches, sockets, terminals, indicators, and power input before student use.
• Replace damaged ICs, loose sockets, cracked leads, or faulty indicators before the next practical.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The company was founded in 1982 and supplies educational and scientific equipment to institutions in India and export markets. Its Electrical and Electronics range includes logic circuit trainers, electronics trainer kits, semiconductor devices trainers, power supply units, analog and digital multimeters, CRO trainers, PLC trainers, and control systems trainers. Buyers should request final specifications before procurement to confirm the IC list, experiment count, voltage rating, manual, accessories, packing, and documentation.
