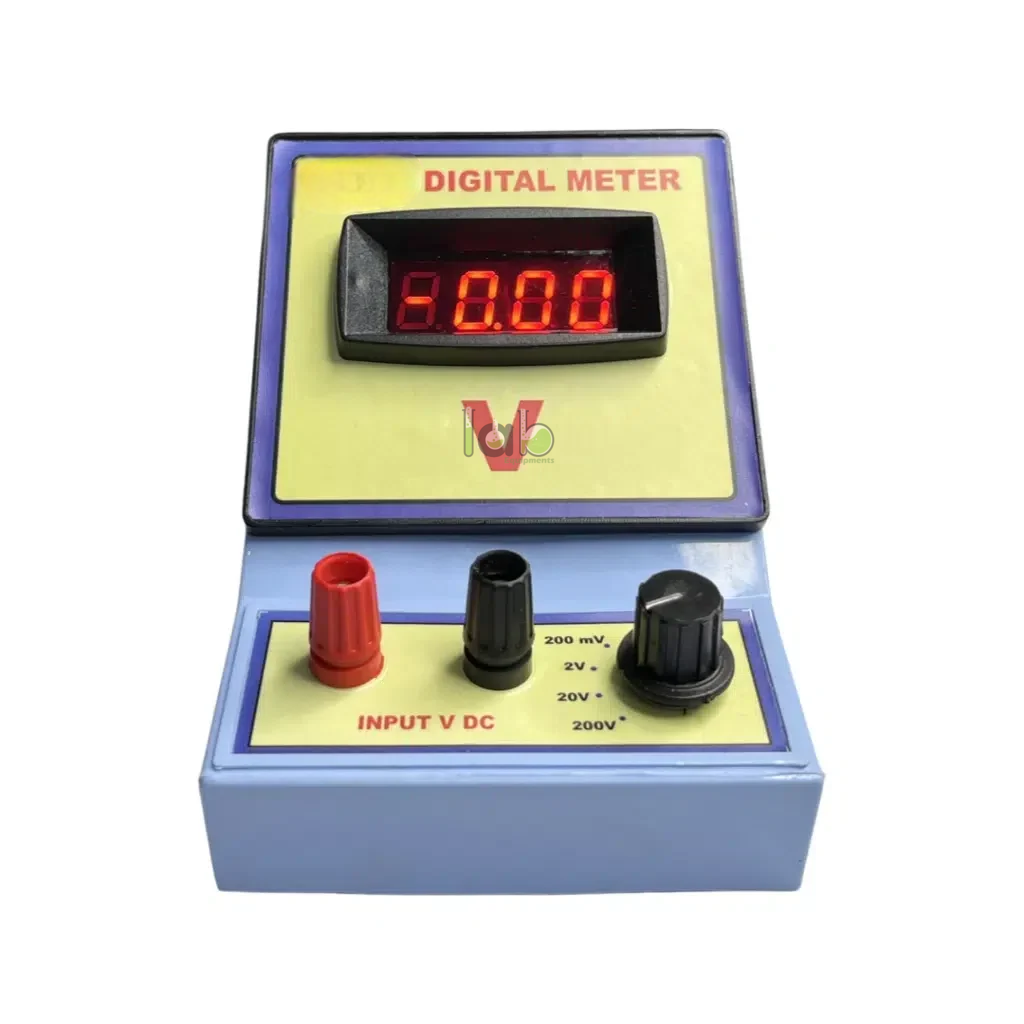

Digital Multi-Range Voltage Indicator

Product Code : SCL-LM-11208

The Digital Multi-Range Voltage Indicator is a laboratory voltage-measuring instrument used to indicate potential difference across selectable voltage ranges in educational electrical and electronics circuits. It is suitable for physics labs, electronics practicals, engineering colleges, polytechnics, ITI/TVET centres, STEM laboratories, distributors, and institutional procurement teams that require clear voltage indication.

Product Description

The Digital Multi-Range Voltage Indicator from Lab Equipments Ambala is best positioned under Physics Lab / Lab Meters / Electrical and Electronics Measuring Instruments. It is intended for practical circuits where students need to observe voltage across a component, supply, load, or circuit section using a readable digital display.

A dedicated product page with final product code, AC/DC voltage type, voltage ranges, range-selection method, display type, resolution, accuracy, input impedance, terminal style, protection, enclosure design, accessories, and documentation should be confirmed before publishing. Do not publish unverified voltage ranges, accuracy values, calibration claims, or certifications without a final specification sheet.

Key Features

• Multi-range voltage indication: supports voltage reading across selectable ranges where the final instrument design permits it.
• Digital display: provides clear voltage indication for classroom demonstrations and student observation tables.
• Voltage-measurement training: helps students learn correct voltage measurement across a component or circuit section.
• AC or DC voltage support: exact voltage type must be confirmed before publishing or ordering.
• Range-selection practice: supports practical learning on selecting a safe voltage range before taking readings.
• Educational lab compatibility: suitable for supervised school, college, engineering, and electronics practical sessions.
• Verification required: voltage ranges, resolution, accuracy, input impedance, protection, and accessories must be verified from the final specification sheet.

Technical Specifications

What's Included in the Kit

• Digital Multi-Range Voltage Indicator main unit
• Input terminals, terminal links, or measuring leads
• Range selector, input section, or protected voltage input arrangement
• Battery, adapter, or trainer-panel power input accessory
• Instruction manual, wiring guide, calibration note, test certificate, or observation sheet
• Protective packing for laboratory or institutional dispatch

Applications / Uses

• Indicating voltage across components in electrical and electronics circuits
• Supporting Ohm’s law, power-supply, series-parallel circuit, and resistance experiments
• Reading voltage across cells, resistors, loads, trainer outputs, and circuit terminals where compatible
• Teaching students how to select a safe voltage range before measurement
• Using as a laboratory voltmeter or voltage indicator in school, college, and engineering practical sessions
• Recording voltage readings for observation tables, circuit-analysis work, and practical files

How to Use the Digital Multi-Range Voltage Indicator

1. Confirm the voltage type, voltage range, polarity marking, input terminals, and circuit diagram before use.
2. Start with the highest suitable voltage range if the expected voltage is unknown.
3. Connect the voltage indicator in parallel across the component, supply, or circuit section being measured.
4. Select the required range using the approved selector or terminal connection method.
5. Switch on the circuit and read the voltage value after the digital display stabilises.
6. Move to a lower range only if the measured voltage is safely within that range.
7. Record the reading with the correct unit and range reference.
8. Switch off the circuit before removing the instrument or changing connections.

Safety note: Do not exceed the confirmed voltage rating of the Digital Multi-Range Voltage Indicator. Use the instrument in parallel for voltage measurement, keep terminals dry, observe polarity for DC measurement, avoid incorrect range selection, and use instructor supervision in student laboratories.

Care & Maintenance

• Keep the display, input terminals, range selector, enclosure, and leads clean and dry.
• Inspect terminal tightness, display function, fuse condition, selector operation, battery or power input, and leads before use.
• Do not overload the voltage input or use the instrument outside the confirmed AC/DC voltage category.
• Store the indicator in a dry cabinet away from dust, moisture, impact, vibration, and excess heat.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports educational and scientific laboratory equipment for physics, chemistry, biology, mathematics, engineering, and STEM laboratories. Its verified Lab Meters category includes educational electrical measuring instruments, including voltage and current measurement instruments for laboratory circuits. Buyers should request the final Digital Multi-Range Voltage Indicator specification sheet before procurement to confirm voltage ranges, AC/DC type, display format, protection, accessories, packing, and documentation.

Frequently Asked Questions

What is a Digital Multi-Range Voltage Indicator used for?

A Digital Multi-Range Voltage Indicator is used to indicate voltage or potential difference across selectable ranges in laboratory electrical and electronics circuits.

Is this product the same as a multi-range voltmeter?

Yes, it can be described as a multi-range voltmeter if the final specification confirms voltage-measurement ranges and voltmeter function. The exact AC or DC configuration should be verified before publishing.

How should a voltage indicator be connected?

A voltage indicator or voltmeter is connected in parallel across the component, supply, or circuit section whose voltage is being measured.

Why are multiple voltage ranges useful?

Multiple ranges help students choose a suitable range for different circuit voltages. Starting with a higher range reduces the risk of overloading the instrument.

Does this indicator measure AC or DC voltage?

The voltage type is not verified. Confirm whether the supplied model measures AC voltage, DC voltage, or both before publishing or ordering.

What should be confirmed before ordering?

Confirm product code, AC/DC voltage type, voltage ranges, range-selection method, display type, resolution, accuracy, input impedance, terminals, protection, accessories, packing, and documentation.
