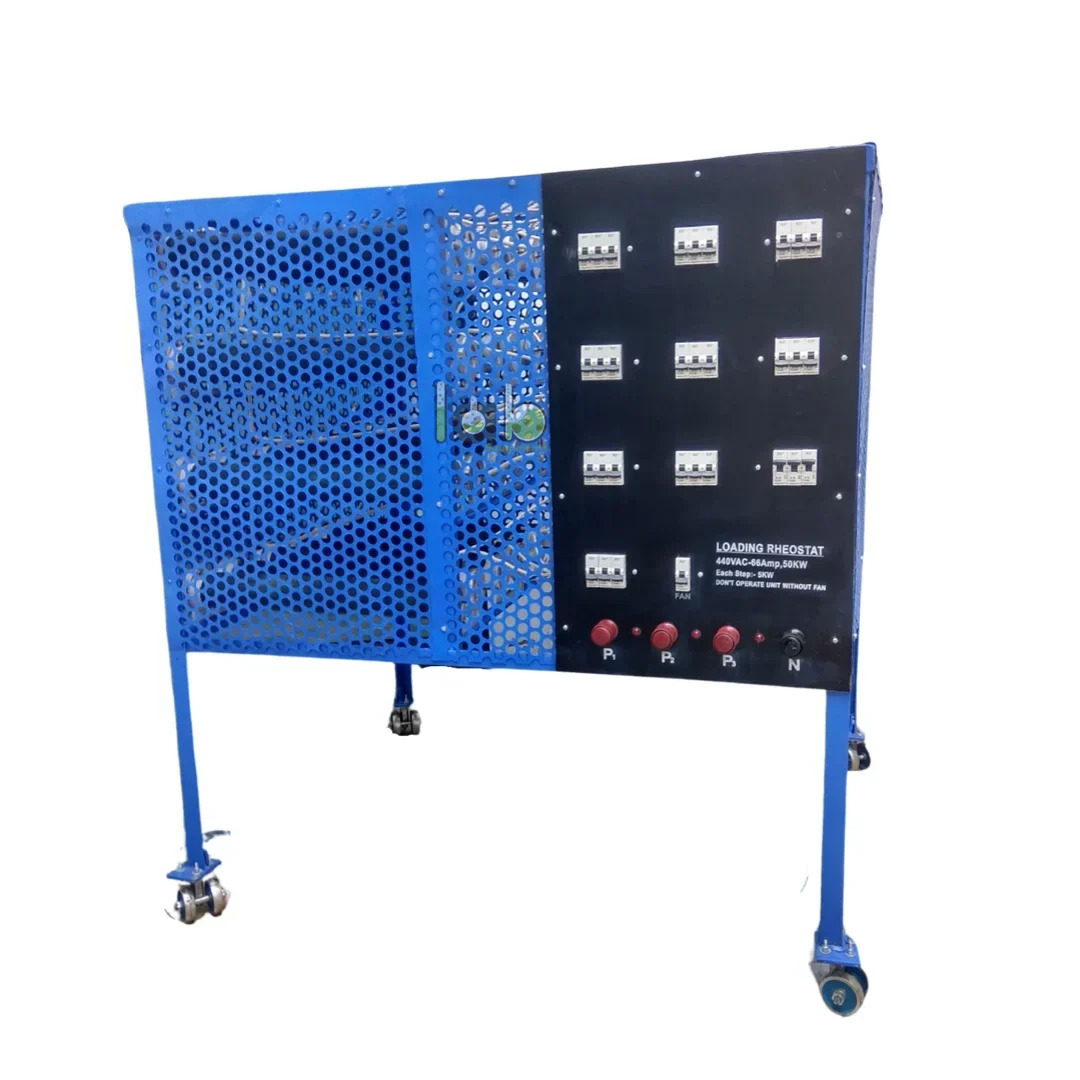

Electrical Load Simulation Bank 50 kW

Product Code : SCL-EAE-11177

The Electrical Load Simulation Bank 50 kW is a high-power electrical laboratory apparatus used to apply controlled load for power-source testing, electrical machine training, voltage-current study, regulation testing, and load-response simulation. It is suitable for engineering colleges, polytechnics, ITI/TVET centres, electrical training labs, industrial training centres, distributors, and institutional procurement buyers.

Product Description

The Electrical Load Simulation Bank 50 kW from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Electrical Machine Training Apparatus. A dedicated product page with final product code, voltage rating, phase type, load type, current rating, load steps, cooling method, enclosure, protection, and duty cycle should be confirmed before publishing.

A load simulation bank provides a controlled electrical load for testing machines, generators, alternators, power supplies, and electrical training panels. In laboratory use, a 50 kW unit can support high-power loading demonstrations and performance tests when operated within the confirmed electrical, thermal, phase, and safety ratings.

Key Features

• 50 kW load rating: product name indicates 50 kW load capacity; final continuous or intermittent duty rating should be confirmed.
• Load simulation function: supports controlled loading of generators, alternators, power sources, and electrical machine trainers.
• High-power laboratory use: suitable for advanced electrical engineering and industrial training applications when correctly rated.
• Stepwise load control: may support gradual load application through switches, taps, or a control panel; confirm final design.
• Measurement-compatible setup: can be used with voltmeters, ammeters, wattmeters, multimeters, and power analyzers.
• Electrical and Electronics category fit: aligns with current-control equipment, lab meters, resistance apparatus, and electrical machine training resources.
• Specifications pending: voltage, current, phase, load type, cooling, protection, terminal design, and duty cycle must be verified.

Technical Specifications

What's Included in the Kit

• Electrical Load Simulation Bank 50 kW main unit
• Load elements or load-bank sections
• Step selector, contactor panel, MCB switches, rotary switch, or control interface
• Input/output terminals and earthing point
• Cooling fan, ventilation system, thermal protection, fuse, MCB, MCCB, or enclosure guard
• Instruction manual, wiring diagram, test report, calibration certificate, or documentation

Applications / Uses

• Applying controlled high-power load to generators, alternators, and electrical machine trainers
• Testing power-source voltage regulation and load response
• Studying voltage, current, power, temperature rise, and efficiency under load
• Supporting electrical machine performance and regulation experiments where the confirmed rating permits
• Training students in safe high-power load connection, metering, switching, isolation, and shutdown procedure
• Simulating practical electrical load conditions for institutional and industrial training laboratories

How to Use the Electrical Load Simulation Bank 50 kW

1. Place the load bank on a dry, stable, well-ventilated surface with clear space around heat outlets and access panels.
2. Confirm the voltage rating, current rating, phase type, 50 kW load rating, load type, duty cycle, cooling requirement, and earthing arrangement before connection.
3. Connect the load bank to the generator, alternator, power source, trainer, or machine under test according to the approved wiring diagram.
4. Connect suitable instruments such as voltmeters, ammeters, wattmeters, power analyzers, frequency meters, or temperature indicators.
5. Set all load switches or control steps to the minimum or off position before energising the system.
6. Switch on the source and apply load gradually using the approved load steps or control panel.
7. Record voltage, current, power, frequency, load step, temperature rise, speed, regulation, and efficiency readings as required.
8. Remove the load gradually, switch off the source, isolate the circuit, and allow the unit to cool before disconnection or storage.

Safety note: Use the Electrical Load Simulation Bank 50 kW only within its confirmed voltage, current, phase, power, load-type, and duty-cycle ratings. A 50 kW load can generate severe heat and hazardous current; use trained supervision, proper earthing, insulated cables, protective switching, ventilation, warning labels, lockout procedure, and safe cooldown time.

Care & Maintenance

• Keep load elements, terminals, switches, ventilation paths, fans, and enclosure surfaces clean and dry.
• Inspect insulation, earthing continuity, terminal tightness, switching devices, fan operation, and overheating marks before every use.
• Do not exceed the confirmed wattage, voltage, current, phase, load-step, temperature, or duty-cycle rating.
• Store the unit in a dry, dust-controlled area away from moisture, corrosive fumes, blocked airflow, and mechanical impact.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The brand supplies electrical and electronics apparatus, physics laboratory equipment, rheostats, resistance boxes, lab meters, power supplies, and practical teaching resources for educational institutions. Its current-electricity and electrical equipment range supports hands-on training in circuit measurement, current control, machine loading, and power analysis. Buyers should request final specifications before procurement to confirm product code, load type, voltage, current, phase, duty cycle, cooling, protection, packing, and documentation.

Frequently Asked Questions

What is an Electrical Load Simulation Bank 50 kW used for?

An Electrical Load Simulation Bank 50 kW is used to apply controlled high-power load for testing generators, alternators, power sources, electrical machines, and training-lab systems.

Is the 50 kW rating confirmed?

The product name states 50 kW. The final voltage rating, current rating, phase type, load type, cooling method, duty cycle, and continuous or intermittent load rating should be confirmed before publishing.

What type of load does this bank provide?

The exact load type is not verified. Confirm whether the product is resistive, inductive, capacitive, or a combined RLC load simulation bank before procurement.

What instruments are normally used with a 50 kW load bank?

Common supporting instruments include voltmeters, ammeters, wattmeters, power analyzers, frequency meters, temperature indicators, tachometers, and the machine or power source under test.

Can students operate a 50 kW load bank independently?

No. A 50 kW load bank should be operated only by trained instructors, laboratory technicians, or authorised personnel because it involves high power, heat, electrical hazard, switching risk, and cooling requirements.

What should be confirmed before ordering?

Confirm product code, load type, voltage rating, phase type, current rating, load steps, cooling method, protection, terminal type, duty cycle, dimensions, weight, test report, and documentation.
