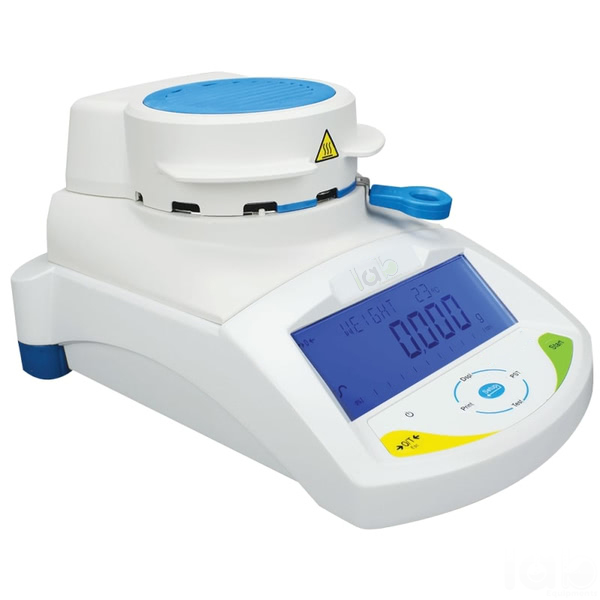

Moisture Analyser, 200g
Product Code : EL-LI-10768
Quick Answer: Moisture Analyser, 200g is a 200 g capacity moisture analyser with 0.01 g readability that heats samples with a single 400 W halogen lamp over a 50°C to 160°C range, selectable in 1°C increments.
Last updated: October 2026
Key Features
- Capacity 200 g, readability 0.01 g / 0.05%, repeatability 0.02 g
- Single 400 W halogen lamp; temperature range 50°C to 160°C in 1°C increments
- Three heating settings: ramp-up, stepped temperatures and single temperature
- Seven preset drying modes; memory for 49 user settings and 99 test results
- USB and RS-232 interfaces for computers, printers and flash drive storage
- Testing can start automatically when the lid closes; audible overload alarm
Technical Specifications
| Specification | Value |
|---|---|
| Capacity | 200 g |
| Readability | 0.01 g / 0.05% |
| Repeatability | 0.02 g |
| Linearity | 0.02 g |
| Pan size | 100 mm ø |
| Heating technology | Single 400 W halogen lamp |
| Temperature range | 50°C to 160°C, one-degree increments |
| Interface | RS-232, USB |
| Weighing units | g, %M, %S, ATRO %M, ATRO %S |
| Calibration | External calibration |
| Operating temperature | 0° to 40°C |
| Power supply | Mains power cord |
| Construction | Die-cast aluminum |
| Net weight | 6 kg |
| Overall dimensions (w x d x h) | 250 x 360 x 185 mm |
| Display digit height | 24 mm |
About This Product
The sample goes on the 100 mm pan with the pan lifter, the lid is closed and testing can begin automatically, with the halogen lamp heating by ramp-up, stepped or single temperature. Frequently tested items are recalled through the automatic test-setting function, and results go to a computer, printer or flash drive without additional software. Housed in scratch-resistant die-cast aluminum, this Laboratory Instruments analyser has a backlit LCD with a built-in capacity tracker for monitoring possible overloads.
Frequently Asked Questions
Q1. How is the Moisture Analyser, 200g heated?
A single 400 W halogen lamp heats samples, with temperature selectable from 50°C to 160°C in one-degree increments.
Q2. Can results be transferred to a computer?
Yes. USB and RS-232 interfaces connect it to computers and printers, and results and settings can also be stored on a flash drive.
Q3. How many test programs can the Moisture Analyser, 200g store?
Internal memory stores 49 programmable user settings and up to 99 test results.
Questions about the Moisture Analyser, 200g? Write to Lab Equipments Ambala.
