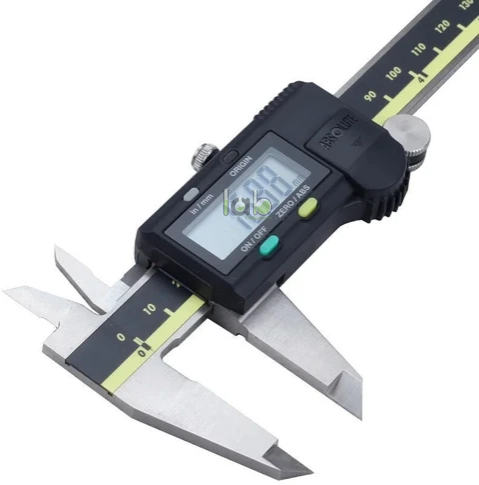

LCD Display Vernier Caliper

Product Code : SCL-AM-11249

The LCD Display Vernier Caliper is a digital measuring instrument used for external, internal, depth and step measurements. It provides a direct electronic reading for students, teachers and technicians who need faster measurement interpretation during physics experiments, dimensional inspection and technical workshop activities.

Product Description

The instrument combines a sliding caliper mechanism with an electronic sensing system and LCD display. Its external jaws measure thickness and outside diameter, while the smaller internal jaws measure holes and internal openings. A depth rod is commonly used for recesses, containers and drilled holes.

The LCD readout reduces the need to interpret a conventional vernier scale manually. A zero-setting function allows the user to establish a reference point, while compatible models may display measurements in millimetres and inches. The exact functions of the supplied model must be confirmed before publication.

Key Features

• LCD measurement display: Presents the measured value directly for quick reading.
• Multiple measurement modes: Suitable for external, internal, depth and step measurements.
• Zero-setting function: Allows the display to be reset at the closed position or another reference point.
• Sliding jaw mechanism: Enables controlled positioning around or inside the workpiece.
• Metric and imperial selection: Available on compatible models; confirm the supplied configuration.
• Locking facility: A locking screw may hold the slider for reading or comparison.
• Educational value: Helps students learn dimensional measurement and instrument handling.
• Portable format: Suitable for laboratory benches, classrooms and technical workshops.

Technical Specifications

What's Included in the Kit

• 1 × LCD display vernier caliper
• Battery
• Protective storage case
• Instruction sheet
• Calibration certificate

Applications / Uses

• Measuring the external diameter of rods, cylinders and laboratory specimens.
• Measuring the internal diameter of tubes, rings and drilled holes.
• Determining the thickness of sheets, blocks and mechanical components.
• Measuring the depth of containers, recesses and blind holes.
• Taking step measurements between two reference surfaces.
• Supporting dimensional experiments in physics laboratories.
• Inspecting components during applied mechanics experiments.
• Measuring specimens used in properties of matter laboratory activities.

How to Use the LCD Display Vernier Caliper

1. Clean the measuring jaws and the surface of the object.
2. Switch on the instrument and select the required measurement unit.
3. Close the external jaws gently and press the zero button.
4. Use the large jaws for external dimensions such as thickness or outside diameter.
5. Use the smaller jaws for internal dimensions such as the diameter of a hole.
6. Extend the depth rod vertically to measure a recess or hole depth.
7. Keep the caliper square to the measured surface and apply only light pressure.
8. Lock the slider if the reading must be retained before removing the instrument.
9. Record the displayed value with the stated unit and instrument resolution.

Handling note: Do not force the jaws, use the caliper as a clamp or measure rotating machinery. Confirm zero before every measurement series.

Care & Maintenance

• Wipe the jaws and beam with a clean, dry, lint-free cloth after use.
• Keep liquids, abrasive dust and corrosive chemicals away from the electronic slider.
• Store the instrument in its protective case in a dry cabinet.
• Remove the battery during extended storage to reduce leakage risk.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific and educational laboratory equipment from Ambala, India. Its range includes physics instruments, measurement tools, mechanics apparatus and technical teaching equipment. The company supports institutional procurement and international laboratory supply. Buyers should confirm the measurement range, resolution, accuracy and calibration requirements before ordering.

Frequently Asked Questions

What is an LCD Display Vernier Caliper used for?

It is used to measure external dimensions, internal dimensions, depth and steps with a direct electronic reading.

Is a digital caliper the same as a traditional vernier caliper?

Both instruments perform similar dimensional measurements. A digital caliper displays the result electronically, while a traditional vernier caliper requires the user to read the main and vernier scales.

What measuring range does this caliper provide?

The range is model-specific and must be confirmed. A measuring range should not be assigned solely from the product name.

Can the caliper measure in millimetres and inches?

Many digital calipers provide selectable millimetre and inch readings, but this function must be confirmed for the supplied model.

How should the digital caliper be zeroed?

Clean and close the external jaws gently, switch on the instrument and press the zero button before beginning a measurement series.

Does the product include a calibration certificate?

A calibration certificate is not assumed. Buyers requiring traceable calibration should specify the certificate and acceptance criteria in their enquiry.

Browse the complete range of physics laboratory equipment or contact Lab Equipments Ambala to confirm the range, resolution, accuracy, battery and calibration options for the LCD Display Vernier Caliper.
