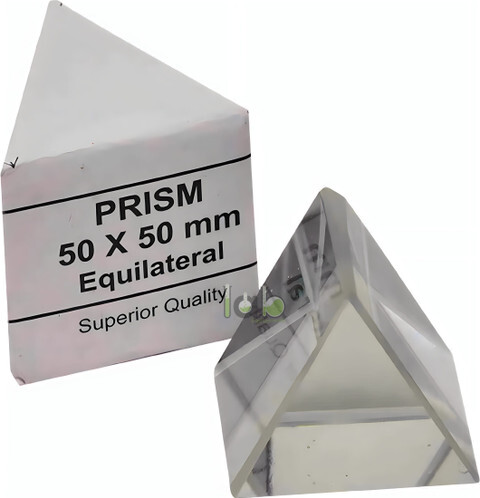

Optical Refraction Prism
.jpeg)
Product Code : SCL-LAO-11298
The Optical Refraction Prism is a transparent glass component used for demonstrating refraction, angular deviation and the dispersion of white light. It is designed for students, teachers and laboratory instructors conducting supervised ray-optics, prism and introductory spectroscopy experiments.
Product Description
The Optical Refraction Prism changes the direction of a light ray as it enters and leaves its polished refracting faces. In an equilateral-prism experiment, students can trace the incident, refracted and emergent rays, measure prism deviation and examine how the result changes with the angle of incidence.
Lab Equipments Ambala publishes this transparent glass prism as product code EL-LAO-10341. Available configurations include 38 mm and 50 mm equilateral prisms in superior or routine quality, as well as 38 mm and 50 mm right-angle prisms. The required geometry and quality grade should be specified when ordering.
Key Features
- Transparent glass construction: Provides visible refracting faces for educational light experiments.
- Multiple configurations: Published options include equilateral and 45°–45°–90° right-angle prisms.
- Two nominal sizes: Available in 38 mm and 50 mm configurations.
- Quality options: Equilateral versions are listed in superior and routine quality grades.
- Refraction demonstrations: Supports tracing of incident, internal and emergent ray paths.
- Dispersion activities: An equilateral prism can separate suitable white light into a visible spectrum.
- Reusable optics component: Suitable for repeated school, college and teacher-led demonstrations.
Technical Specifications
|
Specification |
Detail |
|
Product name |
Optical Refraction Prism |
|
Published product name |
Prism Glass |
|
Brand |
Lab Equipments Ambala |
|
Material |
Transparent glass |
|
Equilateral configurations |
38 mm or 50 mm; superior or routine quality |
|
Right-angle configurations |
45°–45°–90°; 38 mm or 50 mm |
What's Included
- One Optical Refraction Prism in the selected configuration
- Selected nominal size: 38 mm or 50 mm
- Selected geometry: equilateral or right angle
- Protective case or padded packaging
- Prism holder or spectrometer clamp
- Experiment instructions
Applications
- Demonstrating refraction through a triangular glass prism.
- Tracing incident, refracted and emergent rays.
- Measuring the angle of deviation.
- Studying minimum-deviation conditions with suitable apparatus.
- Demonstrating dispersion of white light with an equilateral prism.
- Using a right-angle prism for deviation and reflection activities.
Related equipment includes the Prism Glass, the Ray Optics Kit, the complete Light and Optics range and broader Physics Laboratory Equipment.
How to Use the Optical Refraction Prism
- Place the prism on clean paper, a ray-tracing board or a suitable prism table.
- Trace its outline without moving the component.
- Direct a narrow light ray toward one refracting face.
- Mark the incident ray and the emerging ray.
- Remove the prism and reconstruct the internal ray path.
- Draw normals at the entry and exit points.
- Measure the required incidence, refraction and deviation angles.
- Repeat with other incidence angles or the selected prism configuration.
Safety note: Handle the prism by its non-optical edges. Do not use chipped glass, and never direct a laser, concentrated beam or dispersed sunlight toward the eyes.
Care & Maintenance
- Clean polished faces with a soft, lint-free optical cloth.
- Avoid fingerprints, abrasive cleaners and excessive handling.
- Do not place the prism directly against other glass components.
- Store it in padded, dry packaging to prevent chips and scratches.
Why Choose Lab Equipments Ambala
Lab Equipments Ambala manufactures and supplies educational physics apparatus, optical components and laboratory experiment kits from Ambala, India. Its published optics catalogue includes glass prisms, acrylic prisms, ray-optics kits, lenses and spectrometer accessories. The company supplies schools, colleges, universities and institutional laboratories. Buyers should specify the required prism geometry, size and quality grade when requesting a quotation.
Frequently Asked Questions
What is an Optical Refraction Prism used for?
It is used to demonstrate refraction, angular deviation, ray tracing and, with an equilateral prism, dispersion of white light.
Which prism sizes are available?
The published Prism Glass range includes nominal 38 mm and 50 mm configurations.
Is the prism equilateral?
Equilateral options are published, along with 45°–45°–90° right-angle versions. The required geometry must be selected when ordering.
What is the prism made from?
The published material is transparent glass. The precise optical-glass grade and refractive index are not stated.
Can the prism produce a spectrum?
An equilateral glass prism can disperse suitable white light into constituent colours under an appropriate experimental arrangement.
Does the prism include a holder?
No holder is confirmed as included. Request an itemized packing list when a prism clamp, case or spectrometer accessory is required.
Specify the required 38 mm or 50 mm size, prism geometry and quality grade, or explore the Light and Optics equipment category for related refraction apparatus.
