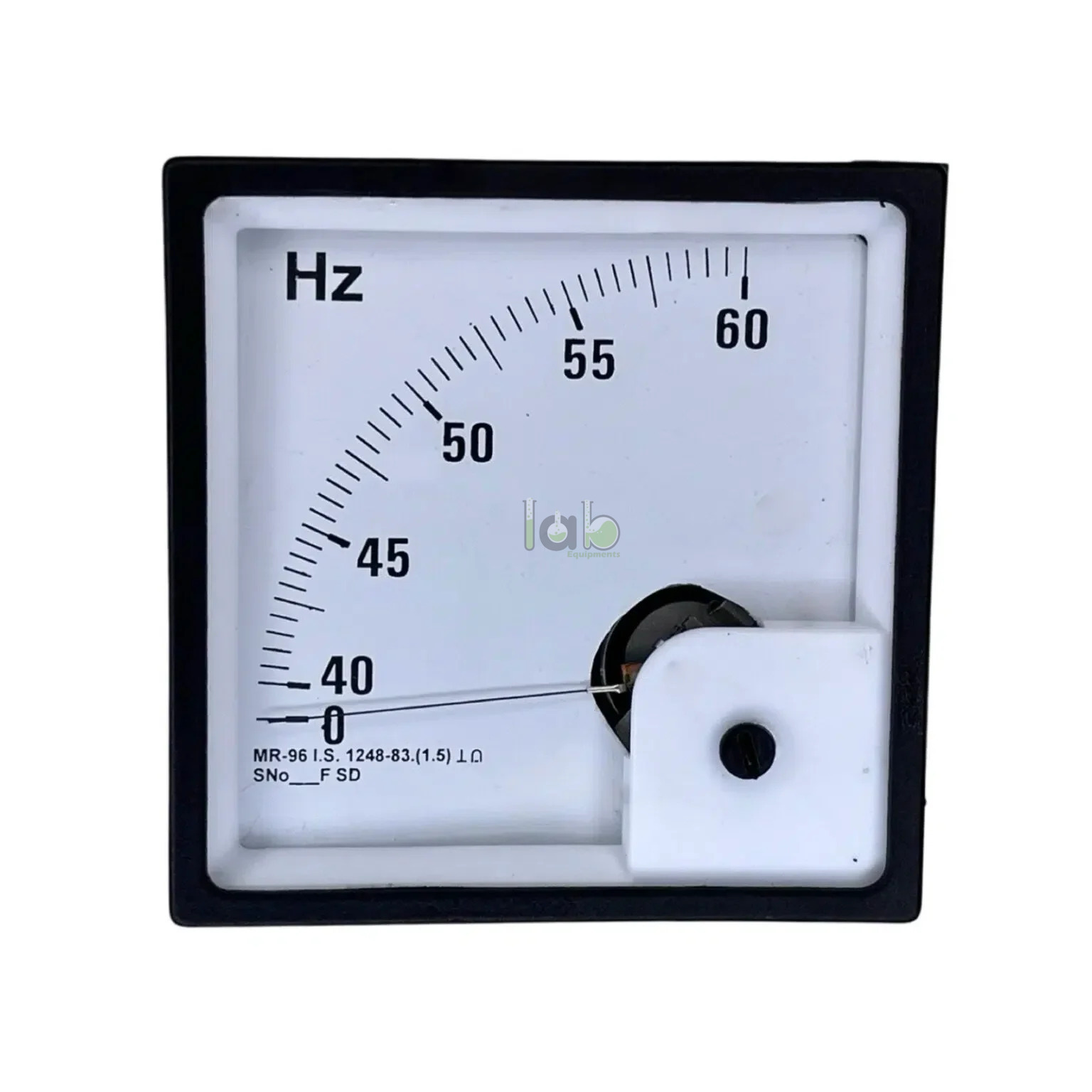

Panel Mount Analog Frequency Meter

Product Code : SCL-LM-11215

The Panel Mount Analog Frequency Meter is an electrical measuring instrument used to indicate signal or supply frequency on an analog scale in laboratory panels and training circuits. It is suitable for physics labs, electrical engineering labs, electronics trainers, power-supply panels, polytechnics, ITI/TVET centres, STEM laboratories, distributors, and institutional procurement buyers.

Product Description

The Panel Mount Analog Frequency Meter from Lab Equipments Ambala is best positioned under Physics Lab / Lab Meters / Electrical and Electronics Measuring Instruments. It is intended for panel-based frequency indication where learners need to observe frequency values during AC circuit, power supply, generator, waveform, or electrical measurement practicals.

A dedicated product page with final product code, frequency range, input voltage, input type, scale division, accuracy class, movement type, panel cut-out, terminal layout, enclosure material, protection, accessories, packing, and documentation should be confirmed before publishing. Do not publish unverified frequency range, accuracy, certification, or calibration claims without a final specification sheet.

Key Features

• Analog frequency indication: provides visual frequency reading on a laboratory meter scale.
• Panel-mount format: suitable for integration into trainer panels, power panels, and demonstration boards where compatible.
• Electrical lab use: supports AC supply, generator, waveform, and frequency-measurement demonstrations where the final rating permits it.
• Classroom-readable scale: helps students observe frequency variation without requiring a separate handheld instrument.
• Input-dependent operation: exact input voltage, frequency range, and signal compatibility must be confirmed before use.
• Educational measurement support: suitable for supervised school, college, engineering, and vocational electrical training laboratories.
• Verification required: range, accuracy, scale length, movement type, panel cut-out, terminals, and protection must be verified from the final specification sheet.

Technical Specifications

What's Included in the Kit

• Panel Mount Analog Frequency Meter main unit
• Panel mounting clamp, screws, bracket, or fixing hardware
• Rear terminals, input links, or connecting leads
• Instruction manual, wiring guide, calibration note, test certificate, or panel cut-out drawing

Applications / Uses

• Indicating AC frequency in electrical laboratory panels
• Using in power-supply trainers, generator trainers, and electrical machine panels where compatible
• Supporting frequency-measurement demonstrations in physics and electronics laboratories
• Helping students observe frequency changes during controlled AC circuit practicals
• Recording frequency readings for observation tables, practical files, and training worksheets
• Panel integration for vocational, technical, and engineering training equipment

How to Use the Panel Mount Analog Frequency Meter

1. Confirm the frequency range, input voltage, terminal marking, and wiring diagram before installation.
2. Mount the meter only in a panel cut-out that matches the confirmed product drawing.
3. Switch off the panel supply before wiring the frequency meter terminals.
4. Connect the input terminals according to the approved wiring diagram and confirmed input rating.
5. Secure the meter using the supplied clamp, bracket, or mounting hardware if provided.
6. Power the circuit under instructor or technician supervision and observe the analog frequency scale.
7. Record the frequency reading only after the pointer stabilises.
8. Switch off supply before servicing, rewiring, or removing the meter from the panel.

Safety note: Use the Panel Mount Analog Frequency Meter only within its confirmed input voltage and frequency range. Do not wire the meter to an unknown supply. Keep terminals insulated and dry, avoid over-voltage input, and ensure panel installation is handled by a competent instructor, technician, or qualified electrical person.

Care & Maintenance

• Keep the scale window, pointer, enclosure, terminals, and mounting area clean and dry.
• Inspect terminal tightness, mounting security, scale visibility, and visible damage before use.
• Do not exceed the confirmed input voltage, frequency range, or insulation rating.
• Store spare meters in protective packing away from dust, moisture, vibration, impact, and excess heat.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports educational and scientific laboratory equipment for physics, chemistry, biology, mathematics, engineering, and STEM laboratories. Its verified Lab Meters category includes panel meters and references frequency meters among laboratory measuring instruments. Buyers should request the final Panel Mount Analog Frequency Meter specification sheet before procurement to confirm range, input voltage, accuracy, panel cut-out, mounting hardware, packing, and documentation.

Frequently Asked Questions

What is a Panel Mount Analog Frequency Meter used for?

A Panel Mount Analog Frequency Meter is used to indicate the frequency of an AC supply or compatible signal in a laboratory panel, trainer, or electrical demonstration setup.

Is this frequency meter digital or analog?

This product is described as analog in the supplied product name. The final scale type, movement type, and display construction should be confirmed from the specification sheet.

What frequency range is available?

The frequency range is not verified. Confirm the exact hertz range, scale divisions, and input compatibility before publishing or ordering.

Can this meter be mounted in an electrical trainer panel?

Yes, the product name indicates panel mounting. Confirm the panel cut-out size, mounting depth, terminal style, and fixing hardware before installation.

What input voltage does the meter require?

The input voltage is not verified. Confirm whether the meter is designed for low-voltage AC training circuits, mains-frequency panels, generator outputs, or another approved input.

What should be confirmed before ordering?

Confirm product code, frequency range, input voltage, movement type, accuracy class, scale type, panel cut-out, terminal layout, mounting hardware, protection, packing, and documentation.

For related measuring instruments, explore Lab Meters, Electrical and Electronics equipment, Physics Lab equipment, and Contact Lab Equipments Ambala for confirmed specifications and institutional enquiries.
