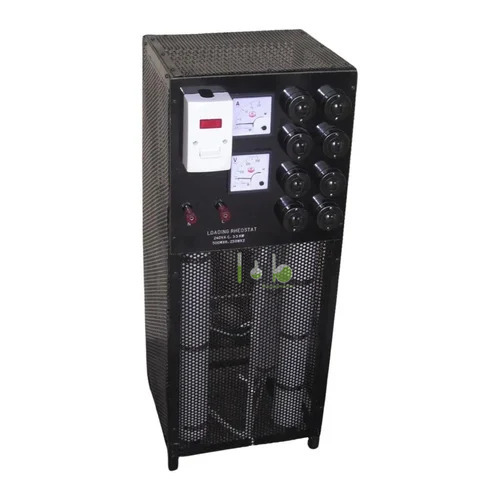

Resistive Load Control Unit

Product Code : SCL-EAE-11164

The Resistive Load Control Unit is an electrical laboratory apparatus used to vary resistance, control current, apply a resistive load, and study voltage-current behaviour in low-voltage circuits. It is suitable for school physics labs, electrical engineering labs, electronics trainers, STEM classrooms, distributors, and institutional procurement buyers.

Product Description

The Resistive Load Control Unit from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Resistance and Current Control Apparatus. A dedicated product page with final product code, resistance range, load rating, current rating, voltage rating, terminals, enclosure type, and duty cycle should be confirmed before publishing.

This unit is intended to provide a controllable resistive load for practical experiments involving Ohm’s law, current control, voltage drop, power dissipation, and load-response testing. The closest verified Lab Equipments Ambala guidance identifies rheostats as required equipment for controlling current in low-voltage circuits and places rheostats, resistance boxes, meters, DC power supplies, keys, and connecting wires within standard physics electricity practical setups.

Key Features

• Resistive load function: supports controlled loading of low-voltage electrical circuits.
• Current-control application: suitable for experiments where resistance is varied to regulate circuit current.
• Physics lab category fit: aligns with Electrical and Electronics equipment for current-electricity practicals.
• Measurement-based learning: can be used with ammeters, voltmeters, multimeters, and DC power supplies.
• Useful for load testing: helps students observe how a circuit behaves under different resistive loads.
• Training-lab relevance: suitable for school, college, ITI, TVET, and engineering laboratory demonstrations.
• Specifications pending: final resistance range, wattage, current capacity, and enclosure details must be verified before final publication.

Technical Specifications

What's Included in the Kit

• Resistive Load Control Unit main apparatus
• Input and output terminals
• Resistance control knob, slider, or selector
• Instruction sheet, experiment manual, wiring diagram, or certificate
• Supporting ammeter, voltmeter, multimeter, DC supply, or load leads

Applications / Uses

• Controlling current in low-voltage physics and electrical circuits
• Applying a variable resistive load during classroom circuit demonstrations
• Studying voltage drop, current variation, and resistance behaviour
• Supporting Ohm’s law and power-dissipation practicals
• Testing power supplies and basic electrical trainers under resistive load
• Teaching safe load connection, meter use, and practical circuit troubleshooting

How to Use the Resistive Load Control Unit

1. Place the unit on a dry, stable, non-conductive laboratory bench.
2. Confirm the rated voltage, current, resistance range, and power rating before connection.
3. Connect the unit in the circuit according to the teacher-approved wiring diagram.
4. Connect the ammeter in series and the voltmeter across the required load point, if readings are required.
5. Set the resistance or load control to the safest starting position recommended in the manual.
6. Switch on the low-voltage supply and observe the circuit current and voltage.
7. Adjust the load gradually and record the change in current, voltage, or power response.
8. Switch off the supply and allow the unit to cool before changing connections or storing it.

Safety note: Use the Resistive Load Control Unit only within its confirmed voltage, current, and wattage limits. Do not connect it to mains electricity unless the manufacturer specifically rates it for that use, and stop the experiment if the unit overheats, emits odour, or shows loose wiring.

Care & Maintenance

• Allow the unit to cool after loaded experiments before storage.
• Keep terminals, leads, and control surfaces clean and dry.
• Inspect for loose terminals, burnt smell, damaged insulation, and overheated parts before each use.
• Store in a dry cabinet away from dust, chemical fumes, moisture, and mechanical impact.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The brand supplies physics laboratory equipment, electrical and electronics apparatus, lab meters, resistance boxes, rheostats, bridge apparatus, and practical teaching resources for educational institutions. Its electrical range supports hands-on learning in current electricity, resistance control, circuit measurement, and safe low-voltage experimentation. Buyers should request final specifications before procurement to confirm the exact product code, load rating, resistance range, supplied accessories, packing, and documentation.

Frequently Asked Questions

What is a Resistive Load Control Unit used for?

A Resistive Load Control Unit is used to apply a controlled resistive load, vary circuit resistance, regulate current, and study voltage-current behaviour in low-voltage electrical experiments.

Is this the same as a rheostat?

It may perform a similar current-control function, but the exact design must be confirmed. A rheostat is typically a variable resistor used in series to control current, while a resistive load unit may be designed for broader load-testing use.

What load rating should be confirmed before purchase?

The final page should confirm voltage rating, current rating, wattage or VA rating, resistance range, duty cycle, terminal type, and cooling method.

Can it be used for Ohm’s law experiments?

Yes, a suitable resistive load control unit can support Ohm’s law and voltage-current experiments when used with the correct low-voltage supply, ammeter, and voltmeter.

What instruments are normally used with this unit?

Typical supporting instruments include a DC power supply, ammeter, voltmeter, multimeter, connecting leads, keys, and sometimes a resistance box or additional load device.

Can students connect it directly to mains electricity?

No. It should be used only within its confirmed rating under instructor supervision. Do not connect it directly to mains electricity unless the manufacturer specifically certifies that configuration.

For related electrical teaching equipment, explore Electrical and Electronics equipment, Rheostat Constantine/Eureka Wire, Resistance Box Plug Type, and Lab Meters for confirmed specifications and institutional enquiries.
