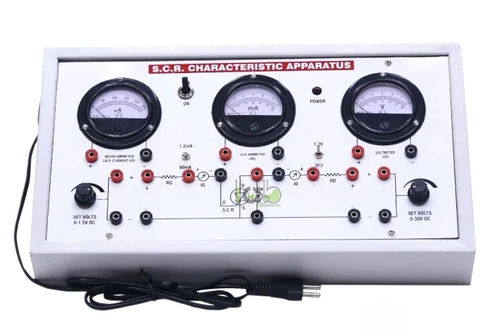

SCR Evaluation & Testing Apparatus

Product Code : SCL-EAE-11192

The SCR Evaluation & Testing Apparatus is a semiconductor electronics laboratory trainer used to study silicon controlled rectifier operation, gate triggering, latching current, holding current, forward blocking, and controlled switching behaviour. It supports practical learning for engineering colleges, polytechnics, ITI/TVET centres, physics laboratories, electronics labs, STEM training centres, distributors, and institutional procurement buyers.

Product Description

The SCR Evaluation & Testing Apparatus from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Semiconductor Devices Trainer. A dedicated product page with final product code, SCR rating, gate-trigger circuit, anode-cathode supply range, gate-current range, load arrangement, meter layout, protection, accessories, and documentation should be confirmed before publishing.

An SCR testing apparatus helps learners observe how a thyristor remains non-conducting until an appropriate gate pulse is applied under forward-bias conditions. Depending on the final configuration, the apparatus may support SCR triggering characteristics, latching-current measurement, holding-current observation, load-control demonstration, and half-wave controlled rectification experiments.

Key Features

• SCR operation study: supports practical observation of silicon controlled rectifier switching behaviour.
• Gate triggering experiment: helps students understand how gate current initiates SCR conduction under forward-bias conditions.
• Latching and holding current learning: may support measurement of latching current and holding current; confirm final experiment support.
• Thyristor characteristics training: suitable for semiconductor devices, power electronics, instrumentation, and electrical engineering laboratories.
• Load-control demonstration: may include lamp load, resistor load, or external load terminals; confirm final load arrangement.
• Measurement-compatible setup: may be used with voltmeter, ammeter, milliammeter, multimeter, digital meters, or built-in indicators if supplied.
• Specifications pending: SCR rating, supply range, gate-current range, load rating, meter arrangement, protection, and accessories must be verified.

Technical Specifications

What’s Included in the Kit

• SCR Evaluation & Testing Apparatus main unit or experiment panel
• SCR / thyristor device section or replaceable SCR socket
• Gate-trigger circuit, trigger switch, or gate-current control
• Anode-cathode supply section or external supply terminals
• Lamp load, resistor load, load terminals, or current-limiting section
• Voltmeter, ammeter, milliammeter, multimeter terminals, or digital display
• Patch cords, connecting leads, experiment manual, observation table, graph worksheet, or circuit diagram

Applications / Uses

• Studying silicon controlled rectifier triggering and switching behaviour
• Measuring or demonstrating SCR gate-triggering conditions where supported
• Observing latching current and holding current in thyristor operation
• Demonstrating SCR load control with a lamp or resistor load if supplied
• Teaching forward blocking, conduction, commutation, and controlled rectification basics
• Supporting power electronics, semiconductor devices, instrumentation, and electrical engineering laboratory practicals

How to Use the SCR Evaluation & Testing Apparatus

1. Place the apparatus on a dry, stable laboratory bench.
2. Confirm the SCR rating, supply voltage, gate-current range, load rating, meter range, polarity marking, and circuit diagram before switching on.
3. Connect the SCR anode, cathode, gate, load, supply, and meters according to the approved wiring diagram.
4. Set the anode supply, load control, and gate-current control to the minimum or recommended starting position.
5. Apply the forward anode-cathode supply within the confirmed safe range.
6. Increase or apply gate trigger current gradually and observe the SCR conduction state.
7. Record voltage and current readings required for triggering, latching-current, holding-current, or load-control observations.
8. Reduce current below the holding-current condition or follow the manual’s reset procedure to switch off SCR conduction.
9. Switch off the supply before changing SCR device, load, meter range, or circuit connections.

Safety note: Use the SCR Evaluation & Testing Apparatus only with the confirmed supply range, load rating, and current-limiting arrangement. Do not connect the experiment circuit directly to mains supply unless the manufacturer-designed input section is specifically rated for it. Observe SCR polarity, avoid short circuits, keep terminals dry, and switch off power before rewiring.

Care & Maintenance

• Keep the panel, SCR socket, terminals, switches, meters, controls, and connecting leads clean and dry.
• Inspect SCR orientation, socket condition, fuse condition, load section, trigger control, and supply output before use.
• Do not exceed the confirmed SCR voltage, current, gate-current, load, power, or meter-range limits.
• Store the apparatus in a dry, dust-controlled cabinet after laboratory use.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The brand’s verified Electrical and Electronics range includes electronics trainer kits, power supply units, analog and digital multimeters, semiconductor devices trainers, logic circuit trainers, and related electrical practical equipment. Buyers should request final specifications before procurement to confirm product code, SCR rating, gate-trigger range, supply type, load arrangement, meter layout, accessories, packing, and documentation.

Frequently Asked Questions

What is SCR Evaluation & Testing Apparatus used for?

SCR Evaluation & Testing Apparatus is used to study silicon controlled rectifier operation, gate triggering, switching behaviour, latching current, holding current, and load-control characteristics in electronics laboratories.

What does SCR stand for?

SCR stands for silicon controlled rectifier. It is a thyristor device that can switch from a blocking state to a conducting state when suitable gate triggering is applied under correct bias conditions.

Does the apparatus include a load?

The load arrangement is not verified. Confirm whether the final apparatus includes a lamp load, resistor load, external load terminals, motor load, or current-limiting section before publishing or ordering.

What readings are recorded during the experiment?

Students may record anode-cathode voltage, anode current, gate voltage, gate current, latching-current readings, holding-current readings, and load-current observations according to the supplied experiment manual.

Can this apparatus be connected directly to mains power?

No direct mains connection should be made to the experiment circuit. Only the manufacturer-designed input section should be connected as specified in the manual, and the experiment must remain within the confirmed supply and load ratings.

What should be confirmed before ordering?

Confirm product code, SCR device number, SCR voltage rating, SCR current rating, gate-trigger range, supply type, load arrangement, meter ranges, protection, terminals, connecting leads, experiment manual, packing, and documentation.

For related semiconductor and electronics laboratory equipment, explore Electrical and Electronics equipment, Physics Lab equipment, Lab Meters, and Contact Lab Equipments Ambala for confirmed specifications and institutional enquiries.
