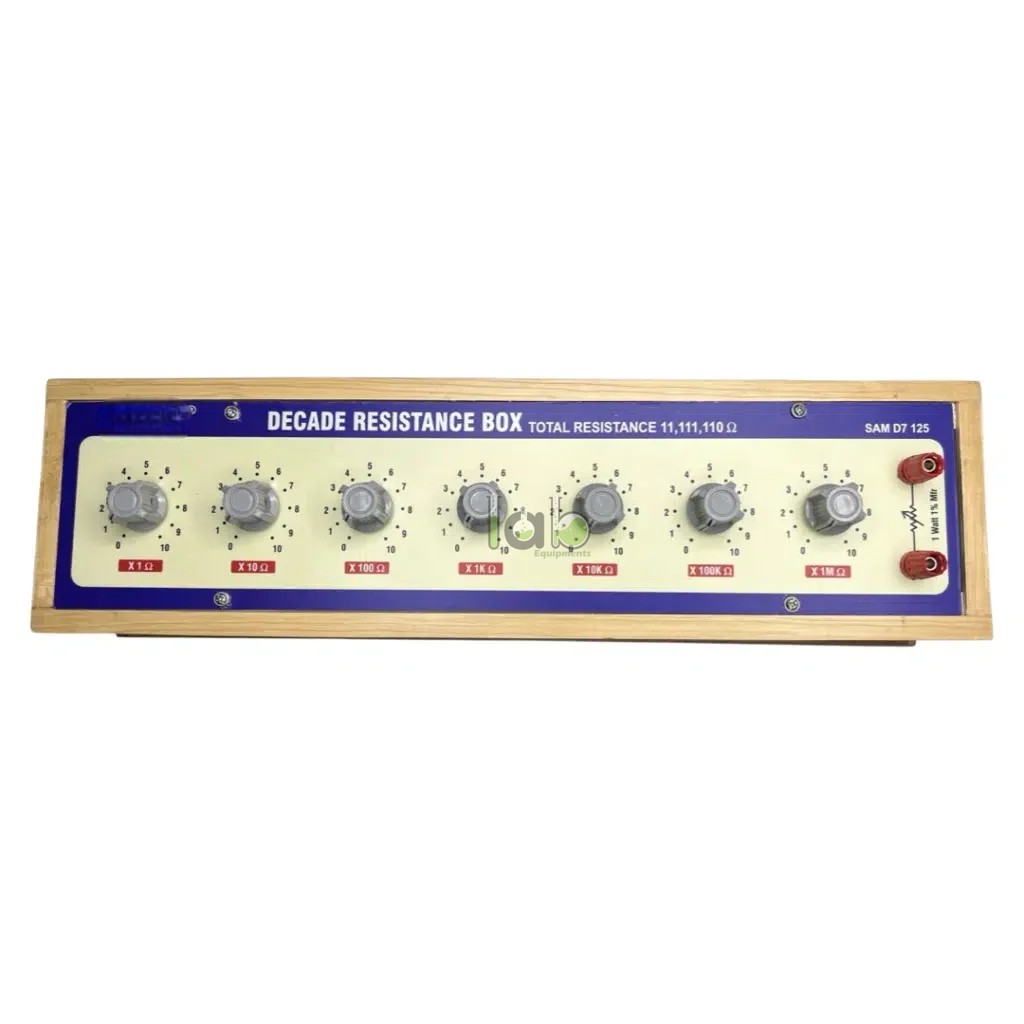

Seven Decade Resistance Box

Product Code : SCL-EAE-11232

The Seven Decade Resistance Box is a laboratory instrument used to introduce a selected resistance into an electrical or electronic circuit. It is designed for physics students, electronics technicians, engineering laboratories, and testing personnel who need controlled resistance substitution across seven independently adjustable decade ranges.

Product Description

A seven decade resistance box combines seven resistance-selection stages in series. Each decade represents a different order of resistance, allowing the user to build the required total value by selecting and adding the settings of the individual decades. The exact minimum value, maximum value, increment, and switching arrangement are model-dependent and must be confirmed.

The instrument supports circuit development, comparative testing, resistance-measurement experiments, and meter verification. It is particularly useful alongside electrical and electronics laboratory equipment where repeatable resistance values are needed without repeatedly changing individual resistors.

Key Features

• Seven resistance decades: Provides seven independently selectable resistance ranges for broad resistance adjustment.
• Additive resistance setting: The selected decade values combine in series to produce the total output resistance.
• Clear value selection: Marked switches or rotary controls help users set and reproduce resistance values.
• Convenient substitution: Replaces multiple loose resistors during circuit testing and laboratory activities.
• Laboratory connections: Output terminal type, terminal spacing, and grounding provision are.
• Model-specific accuracy: Resistance tolerance and residual contact resistance must be verified before precision work.
• Passive operation: An external power supply is normally unnecessary for resistance selection; confirm the approved model design.
• Educational value: Demonstrates place value, series resistance, resistance selection, and circuit response.

Technical Specifications

What’s Included in the Kit

• Seven Decade Resistance Box main unit
• Seven resistance-selection controls
• Output terminals
• Protective earth or guard terminal
• Test leads
• Operating instructions
• Calibration or inspection certificate

Applications / Uses

• Substituting known resistance values in prototype circuits
• Studying current, voltage, and resistance relationships
• Demonstrating resistors connected in series
• Testing bridges, meters, sensors, and basic electronic circuits
• Performing resistance-comparison activities with a Meter Bridge or Wheatstone Bridge
• Supporting electrical practicals in a complete physics laboratory

How to Use the Seven Decade Resistance Box

1. Disconnect power from the test circuit before making connections.
2. Set all seven decades to their lowest or zero positions.
3. Connect the circuit leads to the resistance-box output terminals.
4. Select the required value on each decade.
5. Add the selected decade values to confirm the total resistance.
6. Apply circuit power within the verified voltage, current, and power limits.
7. Record the setting and observed circuit response.
8. Disconnect power before changing leads or removing the instrument.

Safety note: Never exceed the permitted current, voltage, or power rating of any decade. Excess electrical loading can overheat or permanently damage the internal resistance elements.

Care & Maintenance

• Keep the switches, terminals, and enclosure clean and dry.
• Operate each selector gently and avoid forcing it between positions.
• Store the unit with all decades at their minimum settings.
• Verify resistance periodically with a suitable calibrated meter when measurement accuracy is important.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific and educational laboratory equipment from Ambala, India. Its range includes resistance boxes, electrical trainers, measuring instruments, and physics experiment apparatus for institutional laboratories. Buyers can source the unit with related products such as the Decade Resistance Box, Dial Type and Resistance Box Plug Type. Final procurement should be based on an approved datasheet, inspection criteria, and packing list.

Frequently Asked Questions

What is a seven decade resistance box?

It is a resistance-selection instrument containing seven adjustable decade stages. Their selected values are added to produce the required total resistance.

What is a resistance decade?

A resistance decade is a selectable range representing one order of resistance. Seven decades provide finer adjustment across a wider overall range than a box with fewer decades.

Can it replace individual resistors?

Yes. It can temporarily substitute selected resistance values during testing, teaching, and circuit development, provided its electrical ratings are not exceeded.

Can it be used for both AC and DC circuits?

That depends on the resistance element, frequency, insulation, and manufacturer rating. Confirm AC and DC suitability from the approved datasheet.

What is the resistance range of this model?

The exact minimum value, maximum value, and smallest step have not been verified. These specifications should be added only after checking the selected model.

Is a calibration certificate included?

Certificate availability is unconfirmed. Request a calibration or inspection certificate when traceable resistance values are required.

Request the verified resistance range, tolerance, power rating, and terminal configuration, then explore the complete electrical and electronics equipment range for related laboratory instruments.
