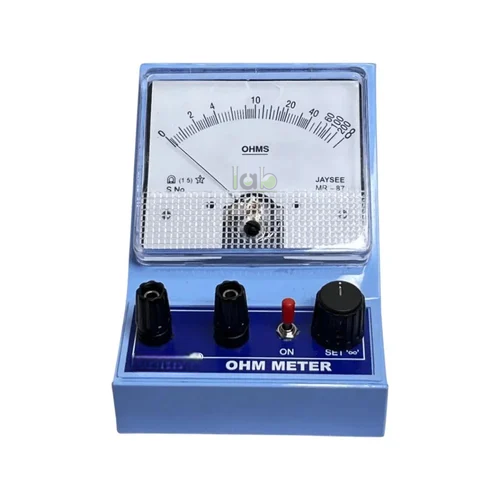

Shunt Type Resistance Testing Instrument

Product Code : SCL-LM-11230

The Shunt Type Resistance Testing Instrument is an electrical laboratory apparatus used for resistance testing, shunt verification, and current-measurement circuit demonstrations where the final configuration supports these functions. It is suitable for physics labs, electronics labs, electrical engineering labs, polytechnics, ITI/TVET centres, STEM laboratories, distributors, and institutional procurement buyers.

Product Description

The Shunt Type Resistance Testing Instrument from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Resistance and Circuit Testing Apparatus. It supports practical work where students and instructors test resistance values, understand shunt operation, verify meter circuits, and study current division in low-voltage electrical experiments.

A dedicated product page with final product code, resistance range, shunt rating, current rating, accuracy, material, terminal layout, display or scale arrangement, compatible meters, protection, accessories, packing, and documentation should be confirmed before publishing. Do not publish unverified resistance values, tolerance, calibration, certification, or safety-rating claims without a final specification sheet.

Key Features

• Shunt-type testing function: supports resistance and shunt-related experiments where the final apparatus configuration permits it.
• Resistance verification support: useful for circuit testing, meter-range extension demonstrations, and practical resistance comparison.
• Educational circuit use: suitable for Ohm’s law, ammeter shunt, current division, and meter-calibration demonstrations.
• Electrical lab compatibility: can be used in supervised physics, electronics, electrical engineering, and vocational training laboratories.
• Terminal-based operation: may include input, output, common, shunt, or test terminals; final terminal layout should be confirmed.
• Low-voltage practical suitability: intended for controlled laboratory circuits when used within confirmed ratings.
• Verification required: resistance range, shunt rating, current rating, accuracy, terminals, protection, and accessories must be confirmed from the final specification sheet.

Technical Specifications

What’s Included in the Kit

• Shunt Type Resistance Testing Instrument main unit
• Built-in shunt or resistance element
• Input, output, common, or test terminals
• Connecting leads, jumper links, or test probes
• Instruction manual, circuit diagram, calibration note, or test certificate
• Protective packing for laboratory or institutional dispatch

Applications / Uses

• Testing resistance values in supervised electrical laboratory circuits
• Demonstrating shunt resistance and current division in meter circuits
• Supporting ammeter range-extension and shunt-verification practicals where compatible
• Using with Ohm’s law, Wheatstone bridge, meter bridge, and resistance-comparison experiments where suitable
• Helping students understand low-resistance paths, meter protection, and circuit loading
• Recording resistance and shunt-test observations for laboratory manuals and practical worksheets

How to Use the Shunt Type Resistance Testing Instrument

1. Confirm the resistance range, shunt rating, current rating, terminal markings, and wiring diagram before use.
2. Switch off the circuit before connecting the instrument.
3. Connect the resistance or shunt terminals according to the approved circuit diagram.
4. Use a compatible ammeter, voltmeter, bridge, or external meter only if required by the final apparatus design.
5. Apply low-voltage supply gradually and keep the test current within the confirmed rating.
6. Observe readings or compare values according to the supplied practical method.
7. Record resistance, current, voltage, or shunt-related observations after the reading stabilises.
8. Switch off supply before changing shunt links, resistance settings, terminal connections, or external meters.

Safety note: Use the Shunt Type Resistance Testing Instrument only within its confirmed voltage, current, resistance, and heat-dissipation ratings. Do not short a power source through an unknown shunt. Avoid overheating, loose terminals, exposed conductors, and over-current conditions. Use instructor or technician supervision during student experiments.

Care & Maintenance

• Keep the resistance element, shunt terminals, enclosure, base, labels, and connecting hardware clean and dry.
• Inspect terminal tightness, insulation, signs of overheating, damaged links, and loose connections before use.
• Do not exceed the confirmed current rating or use the instrument in an unverified circuit.
• Store the apparatus in protective packing away from dust, moisture, heat, impact, and corrosive vapours.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports educational and scientific laboratory equipment for physics, chemistry, biology, mathematics, engineering, and STEM laboratories. Its verified Electrical and Electronics category includes resistance boxes, rheostats, meter bridge / Wheatstone bridge equipment, and other circuit-testing apparatus used in educational laboratories. Buyers should request the final Shunt Type Resistance Testing Instrument specification sheet before procurement to confirm range, rating, terminals, material, accessories, packing, and documentation.

Frequently Asked Questions

What is a Shunt Type Resistance Testing Instrument used for?

A Shunt Type Resistance Testing Instrument is used for resistance testing, shunt verification, current-division demonstrations, and meter-circuit practicals where the final apparatus configuration supports these functions.

What is a shunt resistance?

A shunt resistance is a low-resistance path connected in parallel with a meter or circuit branch to bypass part of the current. It is commonly used to extend ammeter range or protect a meter movement.

Does this instrument include a meter?

The included meter or display is not verified. Confirm whether the apparatus has a built-in analog meter, digital display, terminal-only arrangement, or requires an external meter.

What resistance range is available?

The resistance range is not verified from the supplied product name. Confirm the final resistance values, shunt rating, current rating, and tolerance before publishing or ordering.

Can students use it for Ohm’s law experiments?

It may support Ohm’s law and resistance-comparison practicals if the confirmed circuit arrangement, ratings, and accessories match the experiment requirement.

What should be confirmed before ordering?

Confirm product code, resistance range, shunt rating, current rating, voltage rating, tolerance, shunt material, terminal layout, display method, protection, accessories, packing, and documentation.

For related circuit-testing apparatus, explore Electrical and Electronics equipment, Resistance Box Plug Type, Meter Bridge or Wheatstone Bridge, and Contact Lab Equipments Ambala for confirmed specifications and institutional enquiries.
