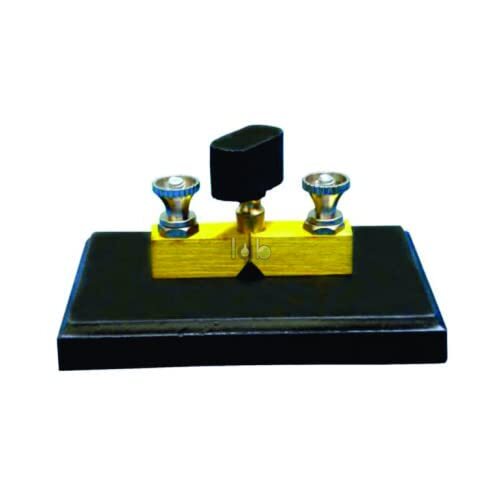

Educational One Way Circuit Key
.jpg)
Product Code : SCL-M-11263
The Educational One Way Circuit Key is a manually operated laboratory switch used to open or close one electrical path in a low-voltage circuit. It enables students and teachers to control current flow during basic electricity, resistance, Ohm’s law and circuit-measurement experiments.
Product Description
A conventional one-way circuit key contains two conductive contact blocks separated by a small gap. Inserting the removable plug bridges the contacts and completes the circuit. Removing the plug breaks electrical continuity and stops current flow.
The visible open-and-closed arrangement helps learners understand basic switching and circuit continuity. The key can be connected with cells, resistors, meters and other components used in an electrical and electronics laboratory. Its exact materials, terminal layout and electrical rating must be confirmed for the supplied model.
Key Features
- One-way circuit control: Opens or closes a single electrical path.
- Make-and-break operation: Provides clear control over current flow during experiments.
- Removable plug mechanism: Bridges the contact blocks when inserted, subject to model confirmation.
- Visible circuit state: Allows students to identify whether the circuit is open or closed.
- Accessible terminals: Supports connection to compatible laboratory leads.
- Passive operation: Requires no internal battery or power supply.
- Reusable construction: Suitable for repeated supervised circuit activities within its confirmed ratings.
- Educational format: Supports introductory lessons on switches, current and electrical continuity.
Technical Specifications
|
Specification |
Detail |
|
Product name |
Educational One Way Circuit Key |
|
Product type |
Manual single-path laboratory switch |
|
Switching function |
One-way make-and-break circuit control |
|
Operating mechanism |
Removable plug – |
|
Number of contact paths |
One |
What's Included in the Kit
- 1 × Educational One Way Circuit Key
- 1 × removable conductive plug
A battery, power supply, connecting leads, ammeter, voltmeter, rheostat and resistance components are not included unless specifically stated.
Applications / Uses
- Demonstrating open and closed electrical circuits.
- Starting and stopping current flow during physics experiments.
- Controlling a circuit used to verify Ohm’s law.
- Operating lamps, buzzers and other compatible low-voltage loads.
- Connecting and disconnecting cells during resistance measurements.
- Controlling current during meter bridge and potentiometer experiments.
- Supporting switching activities with a Domestic Circuit Apparatus.
- Conducting practical work within the physics laboratory equipment range.
How to Use the Educational One Way Circuit Key
- Confirm the terminal layout and electrical rating of the key.
- Keep the laboratory power supply switched off during circuit assembly.
- Connect one terminal to the supply side of the circuit.
- Connect the other terminal to the experimental load or measuring circuit.
- Remove the plug to keep the circuit open while checking the wiring.
- Switch on the low-voltage laboratory supply.
- Insert the plug fully to close the circuit and allow current to flow.
- Remove the plug to open the circuit after taking the required reading.
- Switch off the power source before changing any external connection.
Safety note: Use the circuit key only with a compatible, current-limited, low-voltage educational supply. Never connect it directly to mains electricity or exceed its confirmed current rating.
Care & Maintenance
- Keep the plug, contact blocks and terminals clean and dry.
- Insert and remove the plug vertically without twisting it.
- Do not file or aggressively abrade the contact surfaces.
- Store the removable plug with the key to prevent loss.
Why Choose Lab Equipments Ambala
Lab Equipments Ambala manufactures and exports scientific and educational laboratory equipment from Ambala, India. Its range includes physics apparatus, electrical circuit accessories, switches and classroom demonstration equipment. The company supports institutional procurement and international laboratory supply. Buyers should confirm the materials, terminal dimensions and electrical ratings before ordering.
Frequently Asked Questions
What is an Educational One Way Circuit Key used for?
It is used to open or close one electrical path and control current flow in a low-voltage laboratory circuit.
How does a one-way plug key close a circuit?
Inserting the conductive plug bridges the two contact blocks and creates electrical continuity between them.
What happens when the plug is removed?
The contact path is interrupted, creating an open circuit and stopping current flow.
Is a one-way circuit key the same as a switch?
Yes. It performs the basic function of a single-path electrical switch in educational laboratory circuits.
Is the removable plug included?
A plug is normally part of a plug-key assembly, but its inclusion and quantity should be confirmed for the supplied product.
Can the circuit key be connected to mains electricity?
No. It is intended for supervised, current-limited, low-voltage experiments and must not be connected directly to mains electricity.
Explore the complete electrical and electronics laboratory equipment range or contact Lab Equipments Ambala to confirm the Educational One Way Circuit Key’s construction and institutional supply options.
