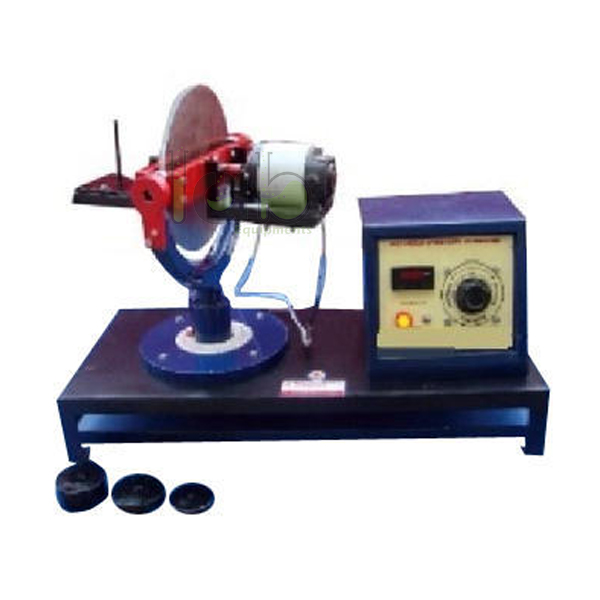

Motorised Gyroscope Apparatus
Product Code : EL-TOML-11020
Quick Answer: Motorised Gyroscope Apparatus has a 250mm diameter rotor, free about 3 axes of rotation and driven by a variable speed motor, with weights of 0.2 kg, 0.5 kg and 1 kg to apply gyroscopic couple.
Last updated: October 2026
Key Features
- Rotor dia. 250mm, mounted in bearings
- Free to rotate about its spin axis, the axis of precession and the axis of gyroscopic couple
- Variable speed motor, speed controlled by dimmerstat
- Weights of 0.2 kg, 0.5 kg and 1 kg for the weight platform
- Stopwatch to measure angular speed about the axis of precession
- Technical manual included
Technical Specifications
| Specification | Value |
|---|---|
| Rotor diameter | 250 mm |
| Drive | variable speed motor, dimmerstat speed control |
| Weights | 0.2 kg, 0.5 kg and 1 kg |
| Timing | stopwatch |
| Supply | 220v stabilized AC with earthing connection |
| Bench area | 0.5 x 0.5 m at working height |
| Tachometer | not included, available as an extra |
About This Product
Weights placed on the weight platform supply torque to the spinning rotor, producing the gyroscopic couple, while the weight of the motor is balanced by another weight. Students time the precession with the stopwatch and set rotor speed with the dimmerstat as a THEORY OF MACHINE LAB exercise. Supplied with a technical manual, it is one of the engineering educational equipments in India that demonstrate gyroscopic couple with a motor-driven rotor.
Frequently Asked Questions
Q1. How is gyroscopic couple applied?
By putting weights (0.2 kg, 0.5 kg and 1 kg) on the weight platform, which supplies torque to the rotor.
Q2. What services does the apparatus need?
A 220v stabilized AC supply with earthing connection and a bench area of 0.5 x 0.5m at working height.
Q3. Is a tachometer included?
No. A tachometer for speed measurement can be supplied as an extra.
Questions about the Motorised Gyroscope Apparatus? Write to Lab Equipments Ambala.
