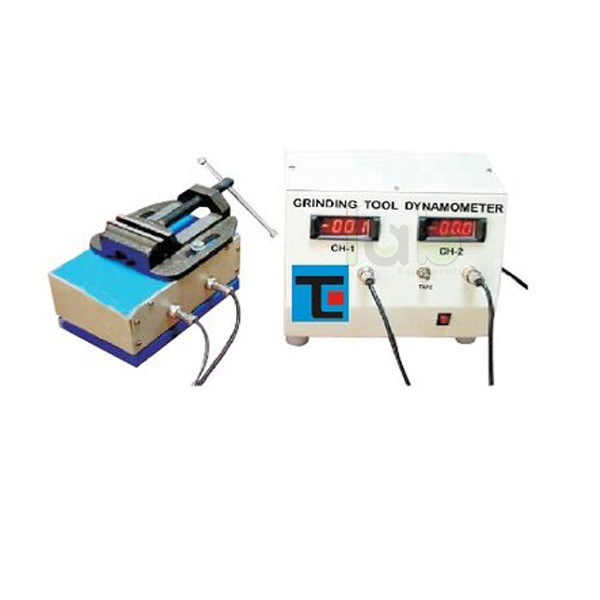

Grinder Tool Dynamometers
Product Code : EL-TOML-11034
Quick Answer: Grinder Tool Dynamometers measure the two forces resolved during a grinding operation, using two octagonal rings with strain gauges and a two channel digital force indicator that reads both forces simultaneously over a range of 0 to 200 kg.
Last updated: October 2026
Key Features
- Mechanical sensing unit with two octagonal rings and strain gauges
- Two channel digital force indicator with balancing potentiometers and polycarbonate front plate
- Force range 0 to 200 kg in coordinate direction
- Mechanical unit overall size 300 x 300 mm
- Rigid, compact construction
Technical Specifications
| Specification | Value |
|---|---|
| Sensing unit | Two octagonal rings with strain gauges |
| Force indicator | Two channel digital, balancing potentiometers, polycarbonate front plate |
| Force range | 0 to 200 kg in coordinate direction |
| Mechanical unit size | 300 x 300 mm |
| Machine required | Surface grinding machine |
| Supply | 230 V, single phase, 50 Hz, stabilised |
About This Product
Designed for demonstration to students of tool design, this THEORY OF MACHINE LAB set-up is mounted on a surface grinding machine to study the forces resolved during grinding. Strain gauges on its octagonal rings act as the sensors, and changing depth of cut, material, speed and feed shows how each affects the two forces.
Frequently Asked Questions
Q1. How many forces does it measure?
Two. The two channel digital force indicator measures both grinding forces simultaneously, over a range of 0 to 200 kg.
Q2. What grinding machine is required?
A surface grinding machine, with a 230 V, single phase, 50 Hz stabilised power supply.
