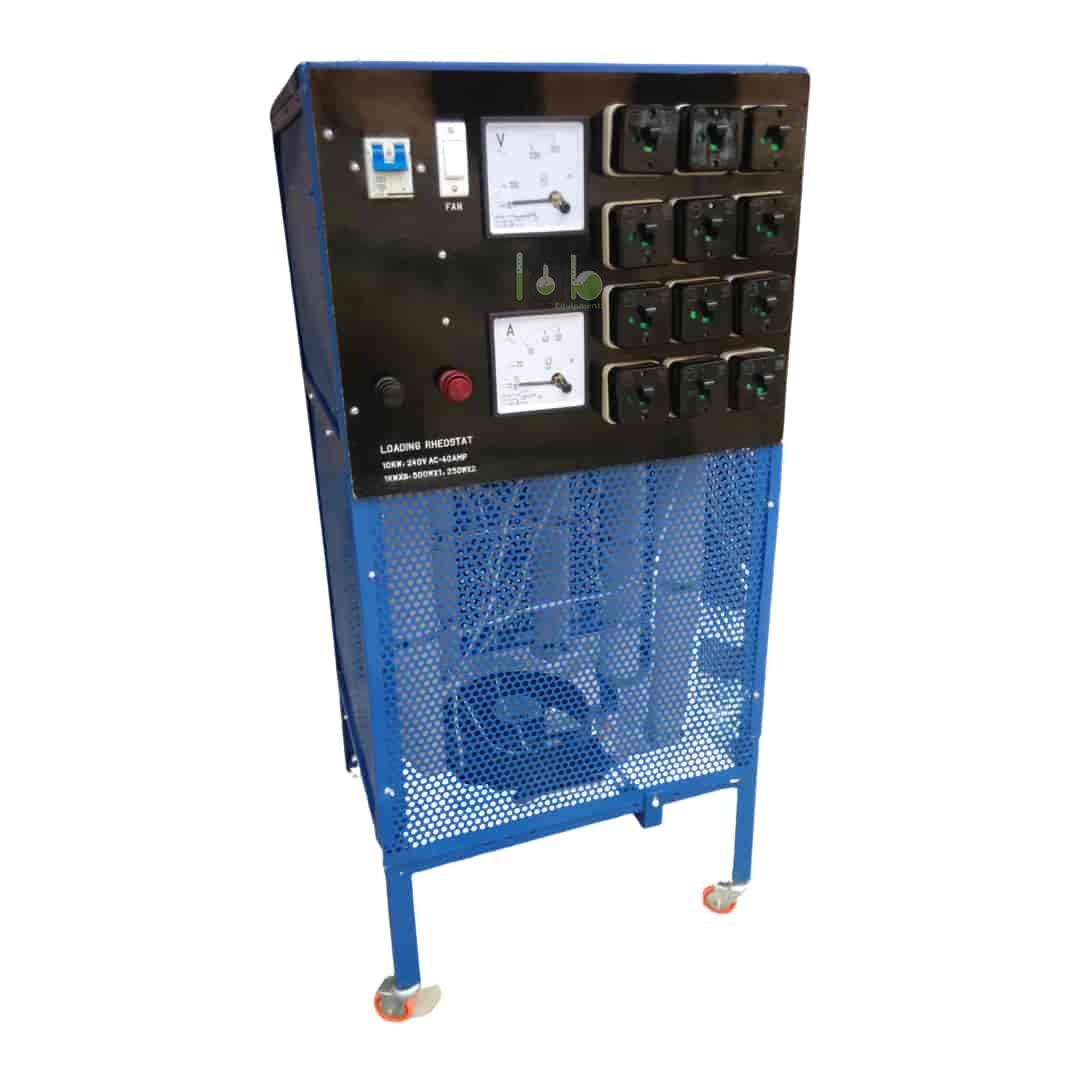

Heavy-Duty 10 kW Resistive Load Bank

Product Code : SCL-EAE-11178

The Heavy-Duty 10 kW Resistive Load Bank is an electrical laboratory load apparatus used to apply controlled resistive loading for power-source testing, voltage-current study, generator loading, alternator testing, and electrical machine training. It is suitable for engineering colleges, polytechnics, ITI/TVET centres, electrical training laboratories, distributors, and institutional procurement buyers.

Product Description

The Heavy-Duty 10 kW Resistive Load Bank from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Resistance and Current Control Apparatus. A dedicated product page with final product code, resistance range, voltage rating, current rating, phase type, load steps, cooling method, terminal design, protection, enclosure, and duty cycle should be confirmed before publishing.

A resistive load bank applies electrical load by dissipating electrical energy as heat through resistance elements. In laboratory use, a 10 kW resistive load bank can support controlled testing of power supplies, generators, alternators, electrical machine trainers, and circuit panels when operated within the confirmed voltage, current, thermal, and duty-cycle ratings.

Key Features

• 10 kW load rating: product name indicates 10 kW resistive loading capacity; final continuous or intermittent duty rating should be confirmed.
• Heavy-duty resistive loading: supports higher-power load testing in electrical machine and power-source laboratories.
• Controlled current variation: helps students observe voltage, current, resistance, and power behaviour under load.
• Electrical machine application: useful for generator, alternator, power-source, and machine-trainer experiments where the confirmed rating permits.
• Stepwise or variable operation: may use switched load sections, selector switches, rotary control, or panel-mounted controls; confirm final design.
• Measurement-compatible setup: can be paired with voltmeters, ammeters, wattmeters, multimeters, frequency meters, and power analyzers.
• Specifications pending: resistance range, voltage, current, phase, cooling, protection, enclosure, terminals, and duty cycle must be verified.

Technical Specifications

What's Included in the Kit

• Heavy-Duty 10 kW Resistive Load Bank main unit
• Resistance elements or resistive load sections
• Step selector, rotary switch, contactor panel, slider, or control interface
• Input/output terminals and earthing point
• Fuse, MCB, MCCB, overload protection, enclosure, ventilation guard, fan, or indicator lamps
• Instruction manual, wiring diagram, test report, calibration certificate, or documentation

Applications / Uses

• Applying controlled 10 kW resistive load to power supplies, generators, alternators, and electrical machine trainers
• Testing voltage regulation and load response of laboratory power sources
• Studying voltage, current, resistance, power, heat generation, and load-step behaviour
• Supporting electrical machine experiments where the confirmed voltage, current, and phase ratings permit
• Demonstrating power dissipation and thermal rise in high-power resistive circuits
• Training students in safe load connection, metering, switching, isolation, shutdown, and cooldown procedures

How to Use the Heavy-Duty 10 kW Resistive Load Bank

1. Place the resistive load bank on a dry, stable, well-ventilated surface with clear space around heat outlets and access panels.
2. Confirm the voltage rating, current rating, phase type, 10 kW load rating, resistance steps, duty cycle, cooling requirement, and earthing arrangement before connection.
3. Connect the unit to the power source, generator, alternator, trainer, or electrical machine under test according to the approved wiring diagram.
4. Connect suitable instruments such as a voltmeter, ammeter, wattmeter, multimeter, frequency meter, temperature indicator, or power analyzer.
5. Set all load controls to the minimum or off position before energising the circuit.
6. Switch on the supply and apply load gradually using approved switches, taps, or control steps.
7. Record voltage, current, power, frequency, load step, resistance setting, temperature rise, regulation, or efficiency observations.
8. Remove the load gradually, switch off the supply, isolate the circuit, and allow the unit to cool before handling or storage.

Safety note: Use the Heavy-Duty 10 kW Resistive Load Bank only within its confirmed voltage, current, phase, wattage, resistance, and duty-cycle ratings. A 10 kW resistive load can generate severe heat and hazardous current; use trained supervision, proper earthing, insulated cables, protective switching, ventilation, warning labels, isolation procedure, and cooldown time.

Care & Maintenance

• Keep resistance elements, terminals, switches, vents, fans, controls, and enclosure surfaces clean and dry.
• Inspect insulation, earthing continuity, terminal tightness, switching devices, fan operation, overheating marks, and control movement before operation.
• Do not exceed the confirmed wattage, voltage, current, phase, resistance-step, temperature, or duty-cycle rating.
• Store the load bank in a dry, dust-controlled area away from moisture, corrosive fumes, blocked airflow, and mechanical impact.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The brand supplies electrical and electronics apparatus, physics laboratory equipment, rheostats, resistance boxes, lab meters, power supplies, and current-electricity teaching resources. Its verified rheostat listing describes laboratory-focused construction details such as phosphor-bronze contacts, double-contact slider movement, porcelain pipe support, oxidised Constantine/Eureka wire, and three brass terminals. Buyers should request final specifications before procurement to confirm product code, resistance range, voltage, current, phase type, duty cycle, cooling, protection, packing, and documentation.

Frequently Asked Questions

What is a Heavy-Duty 10 kW Resistive Load Bank used for?

A Heavy-Duty 10 kW Resistive Load Bank is used to apply controlled resistive load for generator testing, alternator loading, power-source testing, voltage-current-power study, and electrical machine training.

Is the 10 kW rating confirmed?

The product name states 10 kW. The final voltage rating, current rating, phase type, resistance range, cooling method, duty cycle, and continuous or intermittent load rating should be confirmed before publishing.

Is this product the same as a loading rheostat?

It may perform a related current-control or resistive-loading function, but a resistive load bank is usually specified by load capacity and load sections. Confirm whether the final product uses rheostat-style sliding control, switched steps, or fixed resistance sections.

What instruments are normally used with this load bank?

Common supporting instruments include voltmeters, ammeters, wattmeters, multimeters, frequency meters, power analyzers, temperature indicators, and the generator, alternator, power source, or machine under test.

Can students operate a 10 kW resistive load bank independently?

No. A 10 kW load bank should be operated only under trained instructor, laboratory technician, or authorised personnel supervision because it can generate severe heat and may involve hazardous electrical current.

What should be confirmed before ordering?

Confirm product code, resistance range or steps, voltage rating, current rating, phase type, wattage, duty cycle, cooling method, terminal type, protection, dimensions, weight, test report, and documentation.
