AC Step-Down Power Unit
.jpg)
Product Code : SCL-EAE-11325

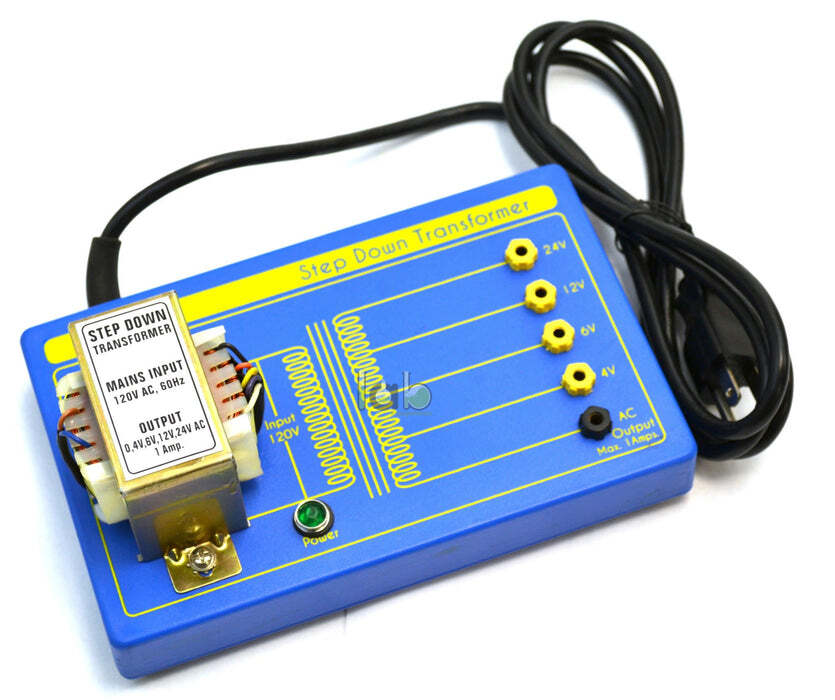

The AC Step-Down Power Unit is an educational transformer used to convert a higher AC input into a lower AC output for supervised physics and electronics experiments. It is intended for schools, colleges, universities, and technical institutes that need a reusable low-voltage AC source.
Product Description
The unit transfers electrical energy between primary and secondary windings by electromagnetic induction. It reduces AC voltage according to the winding ratio. Depending on the model, the secondary may provide one fixed output, several taps, or a centre-tapped output.
The product record identifies a bench-top educational transformer for repeated laboratory use. Housing material, terminal configuration, protection, duty rating, and galvanic-isolation status require confirmation. The unit complements other electrical and electronics laboratory equipment used in structured classroom practicals.
Key Features
- Reduced-voltage AC supply: Provides a lower AC output for compatible educational circuits.
- Transformer-based operation: Supports direct study of step-down action and electromagnetic induction.
- Reusable laboratory source: Supplies repeated practical sessions without relying on disposable cells.
- Flexible experiment support: Suitable for transformer-ratio, rectifier, lamp, coil, and AC investigations.
- Bench-top format: Intended for supervised educational use.
- Selectable output options: Fixed, tapped, or centre-tapped output is available subject to model confirmation.
- Specification-led selection: Input, output, current, and VA ratings can be matched to the experiment after verification.
Technical Specifications
|
Specification |
Detail |
|
Product name |
AC Step-Down Power Unit |
|
Brand |
Lab Equipments Ambala |
|
Product type |
Educational AC-to-AC step-down transformer |
What's Included in the Kit
- 1 AC Step-Down Power Unit
- Integrated or detachable mains lead
- Laboratory connecting leads
- Output tapping links or selector
- Operating instructions and circuit diagrams
Applications / Uses
- Demonstrating primary-to-secondary voltage reduction.
- Studying transformer turns ratio and AC voltage relationships.
- Supplying compatible half-wave and full-wave rectifier experiments.
- Operating low-voltage AC lamps, coils, and induction apparatus.
- Supporting a compatible Ohm's Law Apparatus where the required supply matches.
- Providing a laboratory source for voltage measurements using suitable laboratory meters .
How to Use the AC Step-Down Power Unit
- Place the unit on a dry, stable, and ventilated laboratory bench.
- Verify that the primary input matches the available AC supply.
- Keep the power switched off while assembling the secondary circuit.
- Select the required low-voltage output terminals or tap.
- Connect the load and an AC voltmeter with suitable ranges.
- Switch on the unit and record the secondary voltage under load.
- Keep the connected load within the confirmed current and VA ratings.
- Switch off and disconnect the unit before changing any connection.
Safety note: The primary circuit may contain hazardous mains voltage. Do not open the enclosure, touch exposed conductors, exceed the rated load, or assume galvanic isolation unless the exact model documentation confirms it.
Care & Maintenance
- Disconnect the unit before cleaning, inspection, or storage.
- Keep the enclosure, terminals, and ventilation openings clean and dry.
- Inspect the plug, cable, sockets, and insulation before each laboratory session.
- Replace any fuse only with the manufacturer-specified type and rating.
Why Choose Lab Equipments Ambala
Lab Equipments Ambala manufactures, supplies, and exports educational scientific equipment from Ambala, India. Its range includes physics laboratory equipment , electrical trainers, power supplies, meters, and related teaching apparatus. The company supports educational institutions and procurement projects. Buyers can request model-specific ratings, packing information, and export documentation.
Frequently Asked Questions
What is an AC step-down power unit used for?
It converts a higher AC input into a lower AC output for compatible transformer, induction, rectifier, lamp, coil, and introductory circuit experiments.
What output voltage does this unit provide?
The exact secondary voltage and tapping arrangement are [confirm]. Check the product nameplate and approved datasheet before connecting a load.
Does it convert AC to DC?
No. A transformer supplies AC output. DC requires a separate rectifier and, where needed, filtering or regulation.
Does the unit provide electrical isolation?
Isolation depends on the winding construction. Do not assume the output is isolated unless galvanic separation is explicitly confirmed for the supplied model.
What does the VA rating mean?
The VA rating states the permitted apparent-power load. The connected voltage and current must remain within the confirmed transformer rating.
Can students use it in a school laboratory?
Yes, it is intended for supervised educational work when the circuit, supply, load, and measuring instruments match the unit's verified ratings.
Request the confirmed input, output, current, VA capacity, protection, and isolation details, then browse the Electrical and Electronics Equipment category for compatible laboratory apparatus.
