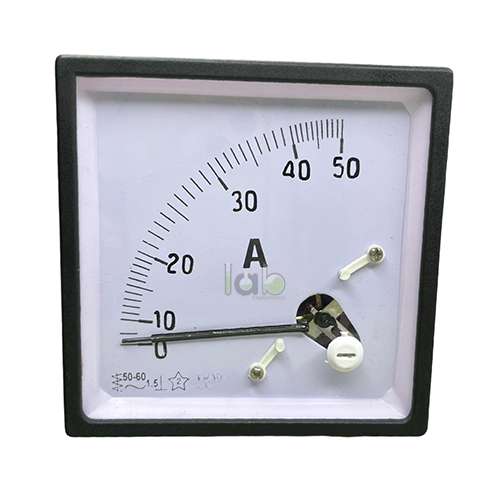

Analog Current Monitoring Meter 50A

Product Code : SCL-LM-11221

The Analog Current Monitoring Meter 50A is an electrical measuring instrument used to monitor current up to 50A in compatible laboratory, trainer-panel, and electrical demonstration circuits. It is suitable for physics labs, electrical engineering labs, electronics trainers, vocational training centres, polytechnics, distributors, and institutional procurement buyers.

Product Description

The Analog Current Monitoring Meter 50A from Lab Equipments Ambala is best positioned under Physics Lab / Lab Meters / Electrical Measuring Instruments. It supports practical work where learners need to observe current variation through a pointer-scale display during load, supply, machine, or circuit-panel demonstrations.

The 50A capacity is retained from the supplied product name. A dedicated product page with final product code, AC/DC current type, scale range, accuracy class, movement type, shunt requirement, input terminals, panel or desk mounting, enclosure material, protection, accessories, packing, and documentation should be confirmed before publishing. Do not publish unverified calibration, certification, accuracy, or safety-rating claims.

Key Features

• 50A current monitoring: supports current indication up to the supplied 50A capacity when used within the confirmed circuit rating.
• Analog pointer display: provides visual current movement for classroom demonstration and practical observation.
• Electrical lab compatibility: suitable for load-current, supply-current, trainer-panel, and electrical-machine practicals where the final rating permits it.
• Current-monitoring role: helps students observe current changes under different load or circuit conditions.
• Panel or bench use: may be supplied as a panel meter, desk meter, or trainer-mounted meter; final mounting style should be confirmed.
• Shunt-dependent operation: high-current analog meters may require an internal or external shunt; confirm the supplied configuration before installation.
• Verification required: AC/DC type, scale, accuracy class, shunt details, input terminals, and protection must be verified from the final specification sheet.

Technical Specifications

What’s Included in the Kit

• Analog Current Monitoring Meter 50A main unit
• Internal shunt, external shunt, current transformer, or direct-current input arrangement
• Mounting clamp, screws, bracket, desk stand, or fixing hardware
• Input terminals, terminal links, or connecting leads
• Instruction manual, wiring diagram, calibration note, test certificate, or panel cut-out drawing
• Protective packing for laboratory or institutional dispatch

Applications / Uses

• Monitoring current up to 50A in compatible electrical laboratory circuits
• Using as an analog ammeter in trainer panels and demonstration boards where ratings match
• Observing load-current changes in supervised electrical engineering practicals
• Supporting power-supply, load-bank, electrical machine, and circuit-panel demonstrations where compatible
• Teaching analog current scale reading, over-range precautions, and current-monitoring practice
• Recording current readings for observation tables, practical files, and training worksheets

How to Use the Analog Current Monitoring Meter 50A

1. Confirm the meter current type, 50A rating, shunt arrangement, terminal marking, and wiring diagram before use.
2. Switch off the circuit or trainer panel before connecting the current meter.
3. Install the meter in series with the current path or connect it through the specified shunt or current transformer if required.
4. Check all high-current terminals, screws, lugs, and insulation before energising the circuit.
5. Apply load gradually and observe the analog pointer movement without exceeding the confirmed 50A range.
6. Read the scale from the front to reduce parallax error and record the current after the pointer stabilises.
7. Reduce the load and switch off supply before rewiring, servicing, or removing the meter.

Safety note: Use the Analog Current Monitoring Meter 50A only within its confirmed current rating, voltage category, and shunt configuration. Do not connect an ammeter directly across a voltage source. High-current circuits can generate heat and arcing; ensure tight terminals, correct cable size, insulation, and competent instructor or technician supervision.

Care & Maintenance

• Keep the scale window, pointer, terminals, enclosure, mounting area, and connecting hardware clean and dry.
• Inspect terminal tightness, shunt condition, insulation, pointer zero, and visible damage before use.
• Do not overload the meter beyond the confirmed 50A range or use it with an unverified shunt arrangement.
• Store spare meters in protective packing away from dust, moisture, vibration, impact, and excess heat.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports educational and scientific laboratory equipment for physics, chemistry, biology, mathematics, engineering, and STEM laboratories. Its verified Lab Meters category includes ammeters, voltmeters, panel meters, galvanometers, portable meters, ohm meters, and demonstration meters for educational laboratory use. Buyers should request the final Analog Current Monitoring Meter 50A specification sheet before procurement to confirm AC/DC type, shunt details, scale, accuracy, mounting, accessories, packing, and documentation.

Frequently Asked Questions

What is an Analog Current Monitoring Meter 50A used for?

An Analog Current Monitoring Meter 50A is used to monitor current up to 50A in compatible electrical laboratory, trainer-panel, or demonstration circuits.

Is this product the same as a 50A analog ammeter?

Yes, it can be described as a 50A analog ammeter if the final specification confirms ammeter function and 50A current scale. Confirm the AC/DC type before publishing or ordering.

Does a 50A analog current meter need a shunt?

It may need an internal or external shunt depending on the design. Confirm whether the supplied meter is direct-reading, shunt-operated, or current-transformer-operated before installation.

How should this current monitoring meter be connected?

A current meter is normally connected in series with the current path or through the specified shunt or current transformer. It should not be connected directly across a voltage source.

Can students use this meter in school laboratories?

It can be used in supervised educational laboratories only when the circuit, cable size, current rating, protection, and instructor controls are suitable for 50A operation.

What should be confirmed before ordering?

Confirm product code, AC/DC current type, 50A scale, accuracy class, movement type, shunt requirement, voltage category, terminal layout, mounting style, protection, packing, and documentation.

For related measuring instruments, explore Lab Meters, Electrical and Electronics equipment, Physics Lab equipment, and Contact Lab Equipments Ambala for confirmed specifications and institutional enquiries.
