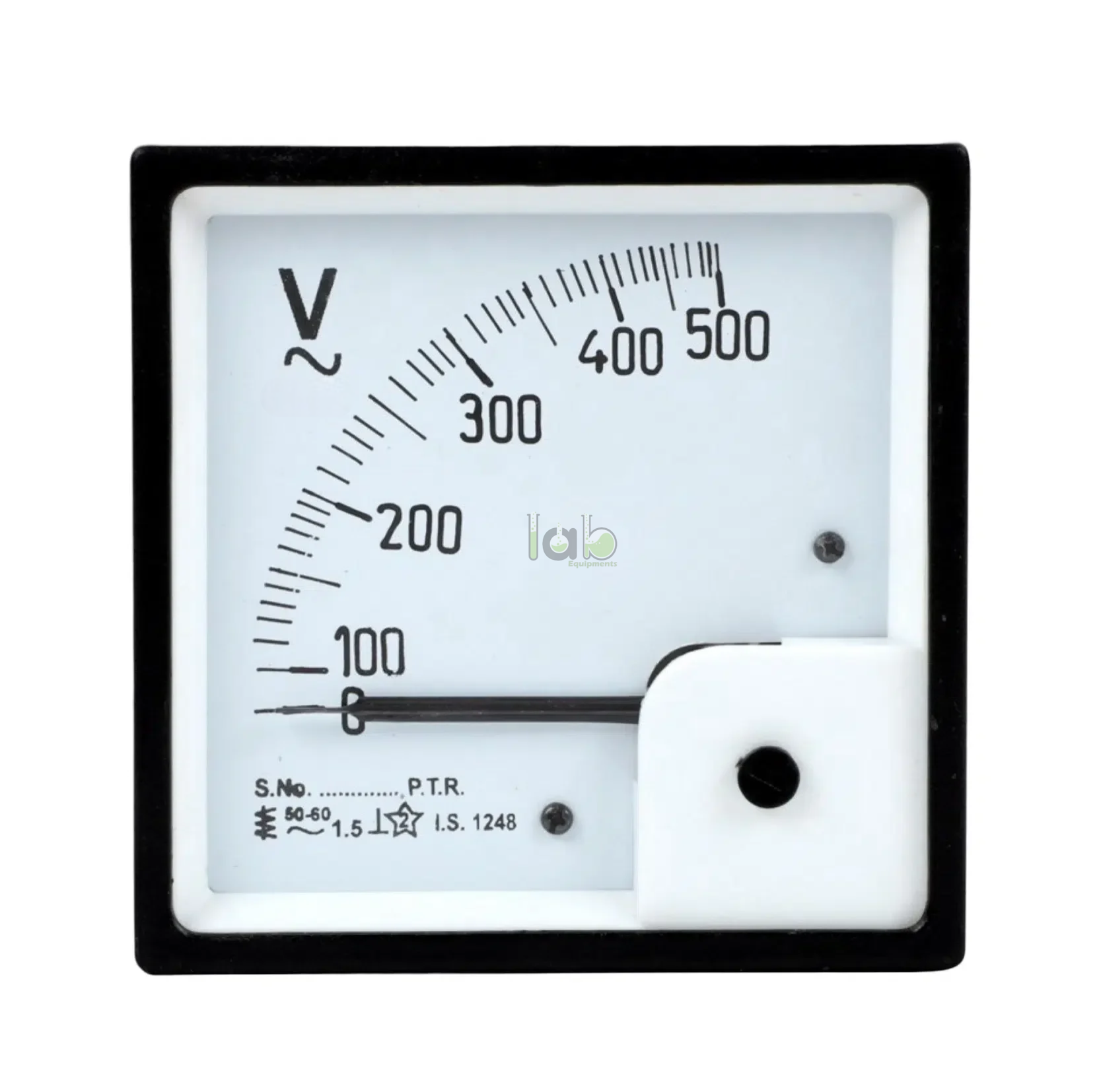

Analog Voltage Measurement Instrument 500V

Product Code : SCL-LM-11222

The Analog Voltage Measurement Instrument 500V is an electrical measuring instrument used to measure potential difference up to 500V in compatible laboratory, trainer-panel, and electrical demonstration circuits. It is suitable for physics labs, electrical engineering labs, electronics trainers, vocational training centres, polytechnics, distributors, and institutional procurement buyers.

Product Description

The Analog Voltage Measurement Instrument 500V from Lab Equipments Ambala is best positioned under Physics Lab / Lab Meters / Electrical Measuring Instruments. It supports practical work where learners need to observe voltage variation through a pointer-scale display during circuit, supply, load, transformer, or control-panel demonstrations.

The 500V capacity is retained from the supplied product name. A dedicated product page with final product code, AC/DC voltage type, scale range, accuracy class, movement type, input resistance, input terminals, panel or desk mounting, enclosure material, protection, accessories, packing, and documentation should be confirmed before publishing. Do not publish unverified calibration, certification, accuracy, or safety-rating claims.

Key Features

• 500V voltage measurement: supports voltage indication up to the supplied 500V capacity when used within the confirmed circuit rating.
• Analog pointer display: provides visual voltage movement for classroom demonstration and practical observation.
• Electrical lab compatibility: suitable for supply-voltage, circuit-voltage, trainer-panel, and electrical-machine practicals where the final rating permits it.
• Voltage-measurement role: helps students observe potential difference across components, supply terminals, or circuit sections.
• Parallel connection use: a voltmeter-type instrument is normally connected across the section where voltage is measured.
• Panel or bench use: may be supplied as a panel meter, desk meter, trainer-mounted meter, or portable meter; final mounting style should be confirmed.
• Verification required: AC/DC type, scale, accuracy class, input resistance, terminals, mounting, and protection must be verified from the final specification sheet.

Technical Specifications

What’s Included in the Kit

• Analog Voltage Measurement Instrument 500V main unit
• Mounting clamp, screws, bracket, desk stand, or fixing hardware
• Input terminals, terminal links, or measuring leads
• Series multiplier, protective resistor, terminal cover, or voltage input accessory
• Instruction manual, wiring diagram, calibration note, test certificate, or panel cut-out drawing
• Protective packing for laboratory or institutional dispatch

Applications / Uses

• Measuring voltage up to 500V in compatible electrical laboratory circuits
• Using as an analog voltmeter in trainer panels and demonstration boards where ratings match
• Observing supply-voltage and load-voltage changes in supervised electrical engineering practicals
• Supporting transformer, power-supply, electrical machine, and circuit-panel demonstrations where compatible
• Teaching analog voltage scale reading, polarity precautions, insulation awareness, and measurement discipline
• Recording voltage readings for observation tables, practical files, and training worksheets

How to Use the Analog Voltage Measurement Instrument 500V

1. Confirm the meter voltage type, 500V rating, input resistance, terminal marking, and wiring diagram before use.
2. Switch off the circuit or trainer panel before connecting the voltage meter.
3. Connect the voltmeter in parallel across the supply terminals, component, or circuit section where voltage is to be measured.
4. Check insulation, terminal tightness, and correct range selection before energising the circuit.
5. Apply voltage gradually and observe the analog pointer movement without exceeding the confirmed 500V range.
6. Read the scale from the front to reduce parallax error and record the voltage after the pointer stabilises.
7. Switch off supply before rewiring, servicing, or removing the meter.

Safety note: Use the Analog Voltage Measurement Instrument 500V only within its confirmed voltage rating, AC/DC type, insulation rating, and circuit category. A voltmeter is connected in parallel, not in series. For 500V work, ensure insulated terminals, correct leads, dry hands, proper supervision, and qualified electrical handling.

Care & Maintenance

• Keep the scale window, pointer, terminals, enclosure, mounting area, and connecting hardware clean and dry.
• Inspect terminal tightness, insulation, pointer zero, scale visibility, and visible damage before use.
• Do not exceed the confirmed 500V range or connect the instrument to an unverified AC/DC source.
• Store spare meters in protective packing away from dust, moisture, vibration, impact, and excess heat.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports educational and scientific laboratory equipment for physics, chemistry, biology, mathematics, engineering, and STEM laboratories. Its verified Lab Meters category includes voltmeters, ammeters, panel meters, galvanometers, portable meters, ohm meters, and demonstration meters for educational laboratory use. Buyers should request the final Analog Voltage Measurement Instrument 500V specification sheet before procurement to confirm AC/DC type, input resistance, scale, accuracy, mounting, protection, accessories, packing, and documentation.

Frequently Asked Questions

What is an Analog Voltage Measurement Instrument 500V used for?

An Analog Voltage Measurement Instrument 500V is used to measure potential difference up to 500V in compatible electrical laboratory, trainer-panel, or demonstration circuits.

Is this product the same as a 500V analog voltmeter?

Yes, it can be described as a 500V analog voltmeter if the final specification confirms voltmeter function and 500V voltage scale. Confirm the AC/DC type before publishing or ordering.

How should this voltage measurement instrument be connected?

A voltage measurement instrument is normally connected in parallel across the component, supply, or circuit section where potential difference is measured.

Can students use a 500V voltmeter in school laboratories?

It should be used only in supervised educational laboratories where the experiment design, insulation, leads, terminals, voltage rating, and instructor controls are suitable for 500V operation.

Does the instrument measure AC voltage or DC voltage?

The AC/DC type is not verified. Confirm whether the supplied meter measures AC voltage, DC voltage, or both before publishing, ordering, or installing it.

What should be confirmed before ordering?

Confirm product code, AC/DC voltage type, 500V scale, accuracy class, movement type, input resistance, insulation rating, terminal layout, mounting style, protection, packing, and documentation.
