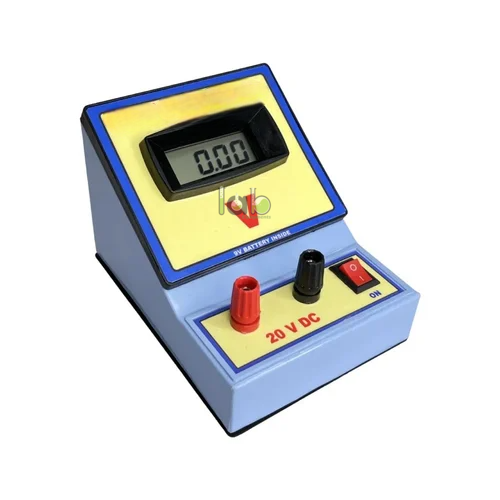

Electronics Lab LCD Voltmeter

Product Code : SCL-LM-11209

The Electronics Lab LCD Voltmeter is a digital voltage-measuring instrument used to read potential difference in physics and electronics laboratory circuits through an LCD display. It is suitable for schools, colleges, engineering labs, polytechnics, ITI/TVET centres, STEM laboratories, distributors, and institutional procurement buyers that need clear voltage readings during practical experiments.

Product Description

The Electronics Lab LCD Voltmeter from Lab Equipments Ambala is best positioned under Physics Lab / Lab Meters / Electrical and Electronics Measuring Instruments. It supports practical circuit work where students need to measure voltage across a component, power supply, load, trainer terminal, or experiment circuit section.

A dedicated product page with final product code, AC/DC voltage type, measuring range, resolution, accuracy, input impedance, display size, terminal type, protection, enclosure design, accessories, and documentation should be confirmed before publishing. Do not publish unverified voltage range, calibration claims, accuracy values, or certifications without a final specification sheet.

Key Features

• LCD voltage reading: provides a clear digital display for voltage measurement in laboratory circuits.
• Electronics lab use: suitable for circuit testing, trainer-kit work, power-supply output checks, and practical observations.
• Voltmeter function: used to measure potential difference across a component, supply, or circuit section.
• Student-friendly display: reduces reading errors associated with pointer parallax on analog voltmeters.
• AC or DC voltage support: exact voltage type must be confirmed before publishing or ordering.
• Bench or panel format: may be supplied as a tabletop meter, panel meter, handheld meter, or trainer-mounted meter; confirm final design.
• Specification-dependent performance: range, resolution, accuracy, input impedance, and protection must be verified from the final data sheet.

Technical Specifications

What's Included in the Kit

• Electronics Lab LCD Voltmeter main unit
• Input terminals, terminal links, or measuring leads
• Battery, adapter, or trainer-panel power input accessory
• Instruction manual, wiring guide, calibration note, test certificate, or observation sheet
• Protective packing for laboratory or institutional dispatch

Applications / Uses

• Measuring voltage across components in electronics laboratory circuits
• Checking power-supply output in supervised school and college practicals
• Supporting Ohm’s law, series-parallel circuits, resistor networks, and current-electricity experiments
• Reading potential difference across resistors, cells, loads, trainer outputs, and circuit terminals where compatible
• Helping students record voltage readings for observation tables, practical files, and circuit-analysis work

How to Use the Electronics Lab LCD Voltmeter

1. Confirm the voltage type, range, polarity marking, input terminals, and circuit diagram before use.
2. Start with the highest suitable voltage range if the expected voltage is unknown.
3. Connect the voltmeter in parallel across the component, supply, or circuit section being measured.
4. Switch on the circuit and allow the LCD reading to stabilise.
5. Record the voltage value with the correct unit and range reference.
6. Move to a lower range only if the measured voltage is safely within that range.
7. Switch off the circuit before removing the voltmeter or changing connections.

Safety note: Use the Electronics Lab LCD Voltmeter only within the confirmed voltage range and rating. A voltmeter is connected in parallel, not series. Keep terminals dry, observe polarity for DC measurement, avoid over-range input, and use instructor supervision in student laboratories.

Care & Maintenance

• Keep the LCD display, input terminals, enclosure, and leads clean and dry.
• Inspect display function, battery condition, terminal tightness, fuse condition, and leads before laboratory use.
• Do not exceed the confirmed AC/DC voltage category or use the meter on circuits outside its rating.
• Store the voltmeter in a dry cabinet away from dust, moisture, impact, vibration, and excess heat.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports educational and scientific laboratory equipment for physics, chemistry, biology, mathematics, engineering, and STEM laboratories. Its verified Lab Meters category includes voltage and current measuring instruments for laboratory circuits, and its wider catalogue supports electronics lab trainers and physics practical equipment. Buyers should request the final Electronics Lab LCD Voltmeter specification sheet before procurement to confirm voltage range, AC/DC type, display format, protection, accessories, packing, and documentation.

Frequently Asked Questions

What is an Electronics Lab LCD Voltmeter used for?

An Electronics Lab LCD Voltmeter is used to measure voltage or potential difference across a component, supply, or circuit section in physics and electronics laboratory circuits.

How should an LCD voltmeter be connected?

An LCD voltmeter should be connected in parallel across the component or circuit section where voltage is being measured. It should not be connected in series like an ammeter.

Does this voltmeter measure AC or DC voltage?

The voltage type is not verified. Confirm whether the supplied Electronics Lab LCD Voltmeter measures AC voltage, DC voltage, or both before publishing or ordering.

What voltage range is available?

The voltage range is not verified. Confirm the exact volt, millivolt, or multi-range configuration from the final product specification sheet.

Is this voltmeter suitable for school and college laboratories?

Yes, it is suitable for supervised school, college, electronics, and engineering laboratory voltage-measurement practicals when used within the confirmed range and safety rating.

What should be confirmed before ordering?

Confirm product code, AC/DC voltage type, voltage range, resolution, accuracy, display size, input impedance, terminal type, power source, protection, accessories, packing, and documentation.

For related measuring instruments, explore Lab Meters, Electrical and Electronics equipment, Physics Lab equipment, and Contact Lab Equipments Ambala for confirmed specifications and institutional enquiries.
