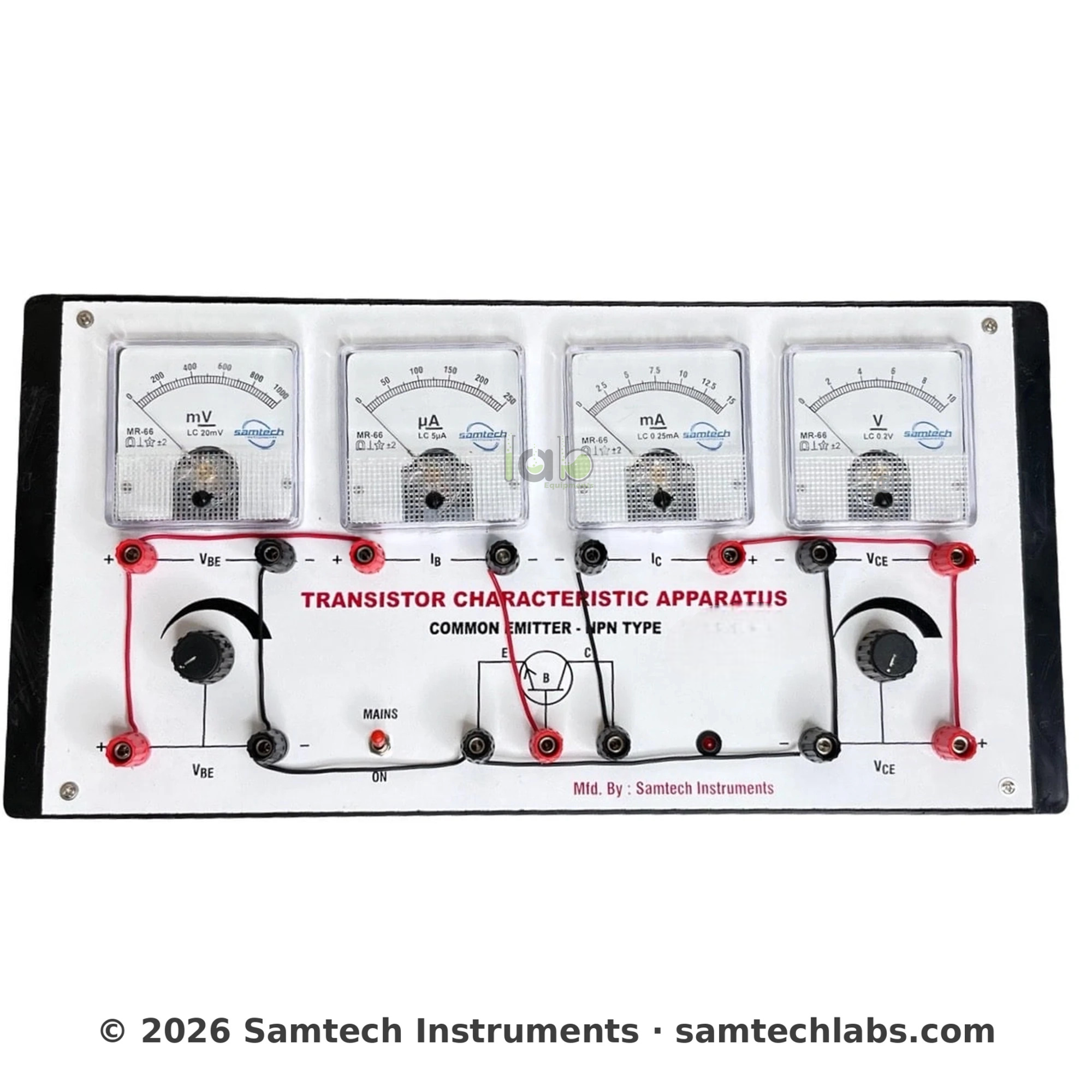

Transistor Circuit Analysis Apparatus

Product Code : SCL-EAE-11196

The Transistor Circuit Analysis Apparatus is a semiconductor electronics laboratory trainer used to analyse transistor biasing, input-output response, current gain, load-line behaviour, and voltage-current characteristics. It supports practical learning for engineering colleges, polytechnics, ITI/TVET centres, physics laboratories, electronics labs, STEM training centres, distributors, and institutional procurement buyers.

Product Description

The Transistor Circuit Analysis Apparatus from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Semiconductor Devices Trainer. A dedicated product page with final product code, transistor type, supported circuit configurations, supply range, bias controls, meter arrangement, load components, terminals, protection, accessories, and documentation should be confirmed before publishing.

A transistor circuit analysis apparatus helps learners study how a transistor behaves in practical circuits under controlled voltage, current, and load conditions. Depending on the final configuration, the apparatus may support common-emitter, common-base, common-collector, amplifier-biasing, switching, gain-measurement, or V-I characteristics experiments. The supplied circuit layout should be verified from the manufacturer documentation.

Key Features

• Transistor circuit analysis: supports study of transistor voltage, current, gain, and biasing behaviour in practical electronics circuits.
• Semiconductor devices trainer: suitable for electronics engineering, physics, instrumentation, and STEM laboratory sessions.
• Biasing experiment support: helps students understand base bias, collector current, emitter current, collector-emitter voltage, and operating point.
• Input-output study: may support input characteristics, output characteristics, transfer behaviour, or gain analysis; confirm final circuit support.
• Configuration learning: may include common-emitter, common-base, common-collector, or amplifier circuit sections; confirm final configuration.
• Measurement-compatible setup: may support voltmeter, ammeter, milliammeter, microammeter, multimeter terminals, or built-in meters if supplied.
• Specifications pending: transistor type, supply ranges, meter ranges, bias controls, protection, and accessories must be verified.

Technical Specifications

What’s Included in the Kit

• Transistor Circuit Analysis Apparatus main unit or experiment panel
• NPN transistor, PNP transistor, BJT, FET, MOSFET, or supplied transistor section
• Biasing circuit, amplifier circuit, switching circuit, or configuration selector
• Built-in DC supply, dual supply, external adapter, or power-input terminals
• Voltmeter, ammeter, microammeter, milliammeter, multimeter terminals, or built-in display
• Load resistor, bias resistor network, potentiometer, patch cords, or connecting leads
• Instruction manual, circuit diagram, observation sheet, graph worksheet, or calculation guide

Applications / Uses

• Analysing transistor biasing and operating-point behaviour in electronics laboratories
• Studying transistor input, output, and transfer response where the supplied circuit supports it
• Measuring base current, collector current, emitter current, and transistor gain values
• Plotting transistor V-I characteristics and load-line observations if included in the final experiment manual
• Demonstrating amplifier, switching, or configuration-based transistor operation where supported
• Supporting semiconductor devices, electronics engineering, instrumentation, physics, and STEM practical training

How to Use the Transistor Circuit Analysis Apparatus

1. Place the apparatus on a dry, stable laboratory bench.
2. Confirm the transistor type, supply voltage, current limits, meter ranges, terminal identification, and circuit diagram before switching on.
3. Select or connect the required circuit configuration according to the supplied manual.
4. Connect the transistor terminals, bias network, load section, supply, and meters according to the approved wiring diagram.
5. Set all supply controls, bias controls, and current controls to the minimum or recommended starting position.
6. Apply the supply gradually and record input voltage, output voltage, base current, collector current, or other specified readings.
7. Repeat readings for different bias or load settings without exceeding the confirmed transistor or meter ratings.
8. Plot the required characteristics, calculate gain, and compare the result with the expected circuit-analysis relationship.
9. Switch off the supply before changing transistor type, circuit configuration, meter range, or connection layout.

Safety note: Use the Transistor Circuit Analysis Apparatus only with the confirmed low-voltage DC supply and current-limiting arrangement. Do not connect the experiment circuit directly to mains supply. Observe transistor terminal orientation, avoid short circuits, keep terminals dry, do not exceed confirmed device ratings, and switch off power before changing connections.

Care & Maintenance

• Keep the panel, transistor socket, terminals, switches, meters, controls, and connecting leads clean and dry.
• Inspect transistor orientation, socket condition, lead continuity, fuse condition, control movement, and supply output before use.
• Do not exceed the confirmed transistor voltage, current, power dissipation, bias limit, or meter-range limits.
• Store the apparatus in a dry, dust-controlled cabinet after laboratory use.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The brand’s verified Electrical and Electronics portfolio includes electronics trainer kits, power supply units, analog and digital multimeters, semiconductor devices trainers, logic circuit trainers, renewable energy training modules, and related electrical practical equipment. Buyers should request final specifications before procurement to confirm product code, transistor type, circuit configuration, supply range, meter layout, controls, protection, accessories, packing, and documentation.

Frequently Asked Questions

What is Transistor Circuit Analysis Apparatus used for?

Transistor Circuit Analysis Apparatus is used to study transistor biasing, input-output response, current gain, V-I characteristics, load-line behaviour, and practical transistor circuit operation in electronics laboratories.

Which transistor type is supplied with the apparatus?

The supplied transistor type is not verified. Confirm whether the apparatus includes NPN BJT, PNP BJT, FET, MOSFET, or another transistor device before publishing or ordering.

Does the apparatus support common-emitter experiments?

Configuration support is not verified. Confirm whether the final apparatus supports common-emitter, common-base, common-collector, amplifier, switching, or multiple transistor circuit configurations.

What readings are recorded during transistor circuit analysis?

Students may record input voltage, output voltage, base current, collector current, emitter current, collector-emitter voltage, and gain-related values according to the supplied experiment manual.

Can this apparatus be connected directly to mains power?

No. The experiment circuit should be used only with the confirmed low-voltage DC supply or approved adapter. Direct mains connection can damage the apparatus and create an electrical hazard.

What should be confirmed before ordering?

Confirm product code, transistor type, supported circuit configurations, supply range, current range, meter arrangement, bias controls, load components, terminals, connecting leads, experiment manual, packing, and documentation.

For related semiconductor and electronics laboratory equipment, explore Electrical and Electronics equipment, Physics Lab equipment, Lab Meters, and Contact Lab Equipments Ambala for confirmed specifications and institutional enquiries.
