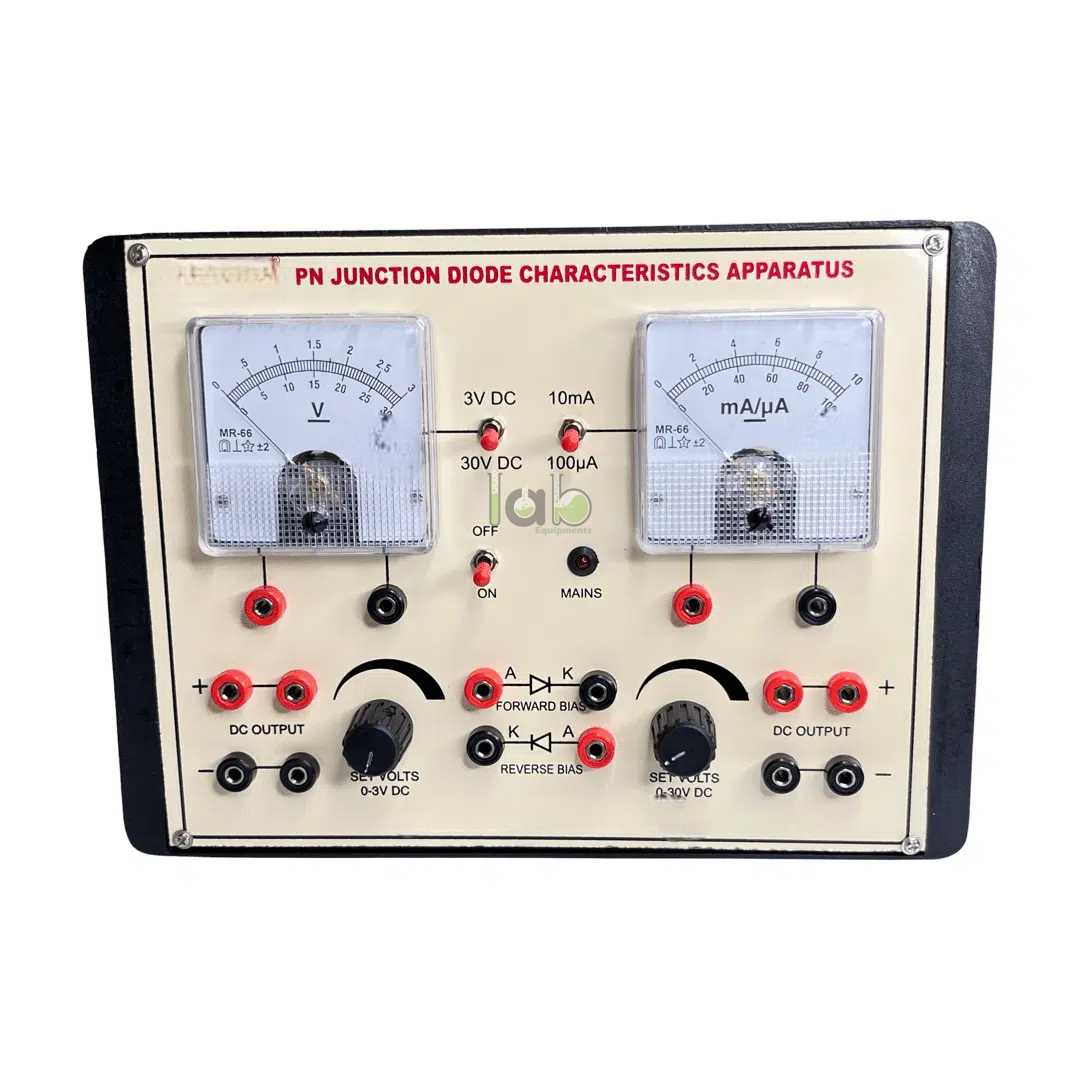

Two Meter PN Diode Practical Apparatus

Product Code : SCL-EAE-11202

The Two Meter PN Diode Practical Apparatus is a semiconductor electronics laboratory trainer used to study PN junction diode behaviour, forward-bias characteristics, reverse-bias characteristics, threshold voltage, and voltage-current response using two measurement meters where supplied. It supports practical learning for engineering colleges, polytechnics, ITI/TVET centres, physics laboratories, electronics labs, STEM training centres, distributors, and institutional procurement buyers.

Product Description

The Two Meter PN Diode Practical Apparatus from Lab Equipments Ambala is best positioned under Physics Lab / Electrical and Electronics / Semiconductor Devices Trainer. A dedicated product page with final product code, PN diode type, diode material, two-meter arrangement, supply range, current range, biasing circuit, terminals, protection, accessories, and documentation should be confirmed before publishing.

A two-meter PN diode apparatus helps learners observe how a junction diode conducts in forward bias and restricts current in reverse bias within its rated operating region. The two-meter design may provide separate voltage and current readings, but the exact voltmeter, ammeter, range, accuracy, and display type must be verified from the final product specification.

Key Features

• PN junction diode practical: supports study of forward-bias and reverse-bias diode behaviour.
• Two-meter learning setup: product name indicates two measurement meters; exact voltmeter and ammeter arrangement should be confirmed.
• V-I characteristics experiment: helps students record voltage and current readings for diode characteristic-curve plotting where supported.
• Forward-bias learning: enables observation of conduction region, threshold voltage, knee voltage, and current rise with applied voltage.
• Reverse-bias learning: may support leakage-current observation within safe operating limits; confirm reverse-bias range and meter sensitivity.
• Measurement-oriented trainer: suitable for electronics engineering, physics, instrumentation, and STEM laboratory sessions.
• Specifications pending: diode type, meter ranges, supply range, current limiting, terminals, and accessories must be verified.

Technical Specifications

What’s Included in the Kit

• Two Meter PN Diode Practical Apparatus main unit or experiment panel
• PN junction diode section, diode socket, or supplied diode device
• Two measurement meters, such as voltmeter and ammeter
• Forward-bias and reverse-bias circuit section
• Current-limiting resistor, protection resistor, variable control, or biasing network
• DC power supply, external adapter, battery holder, or power-input terminals
• Patch cords, connecting leads, jumper wires, experiment manual, observation sheet, graph worksheet, or circuit diagram

Applications / Uses

• Studying PN junction diode forward-bias characteristics
• Studying reverse-bias diode behaviour and leakage-current observation where supported
• Recording voltage and current readings using a two-meter practical arrangement
• Plotting diode V-I characteristics in electronics and physics laboratories
• Demonstrating diode polarity, threshold voltage, knee voltage, and current-limiting principles
• Teaching low-voltage semiconductor measurement practice for physics, electronics, instrumentation, and STEM practicals

How to Use the Two Meter PN Diode Practical Apparatus

1. Place the apparatus on a dry, stable laboratory bench.
2. Confirm the PN diode type, meter ranges, supply voltage, current limit, polarity marking, and circuit diagram before switching on.
3. Connect or select the PN diode in forward bias according to the approved wiring diagram.
4. Check that the voltage meter and current meter are connected according to the supplied circuit diagram.
5. Set the supply or current-control section to the minimum output before energising the circuit.
6. Increase the voltage gradually and record voltage and current readings from the two meters without exceeding the confirmed rating.
7. Repeat the experiment in reverse bias only if the apparatus and manual specify a safe reverse-bias procedure.
8. Plot the forward and reverse V-I characteristics as instructed in the supplied experiment manual.
9. Switch off the supply before changing polarity, diode type, meter range, or circuit connections.

Safety note: Use the Two Meter PN Diode Practical Apparatus only with the confirmed low-voltage DC supply and current-limiting arrangement. Do not connect the experiment circuit directly to mains supply. Observe diode polarity, avoid short circuits, do not exceed the confirmed forward-current or reverse-voltage rating, and switch off power before changing connections.

Care & Maintenance

• Keep the panel, diode socket, meters, terminals, switches, controls, and connecting leads clean and dry.
• Inspect diode polarity marking, meter zero position, socket condition, test leads, fuses, current-limit control, and supply output before use.
• Do not operate the diode, meters, or supply beyond confirmed voltage, current, reverse-voltage, power, or meter-range limits.
• Store the apparatus and spare diode components in a dry, labelled, dust-controlled cabinet after laboratory use.

Why Choose Lab Equipments Ambala

Lab Equipments Ambala manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. The brand’s verified Electrical and Electronics category includes electronics trainer kits, power supply units, analog and digital multimeters, semiconductor devices trainers, logic circuit trainers, and electronic lab equipment. Buyers should request final specifications before procurement to confirm product code, diode material, two-meter arrangement, supply range, meter ranges, protection, accessories, packing, and documentation.

Frequently Asked Questions

What is Two Meter PN Diode Practical Apparatus used for?

Two Meter PN Diode Practical Apparatus is used to study PN junction diode forward-bias and reverse-bias behaviour, voltage-current characteristics, threshold voltage, and basic semiconductor-device operation.

What does two meter mean in this PN diode apparatus?

Two meter indicates that the apparatus may include two separate measurement meters, typically one for voltage and one for current. The exact meter type, range, display, and accuracy should be confirmed.

Which PN diode type is supplied?

The supplied diode type is not verified. Confirm whether the apparatus includes a silicon diode, germanium diode, replaceable PN junction diode, or fixed diode mounted on the panel.

What readings are recorded during the experiment?

Students typically record diode voltage and diode current for different applied voltages, then plot the forward and reverse V-I characteristics according to the supplied experiment manual.

Can this apparatus be connected directly to mains power?

No. The experiment circuit should be used only with the confirmed low-voltage DC supply or approved adapter. Direct mains connection can damage the apparatus and create an electrical hazard.

What should be confirmed before ordering?

Confirm product code, PN diode type, diode material, voltage-meter range, current-meter range, supply range, current-limiting method, terminals, connecting leads, experiment manual, packing, and documentation.
